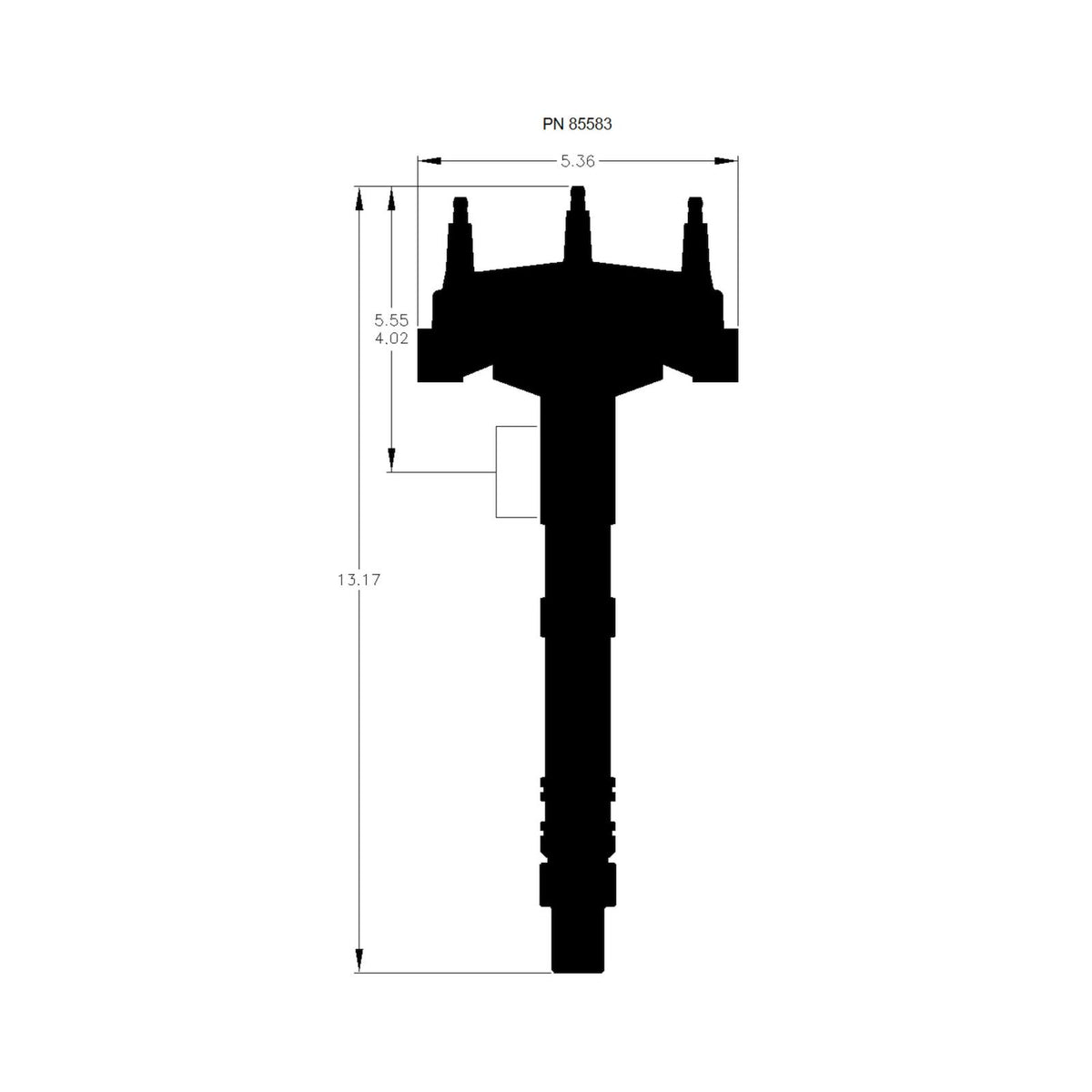

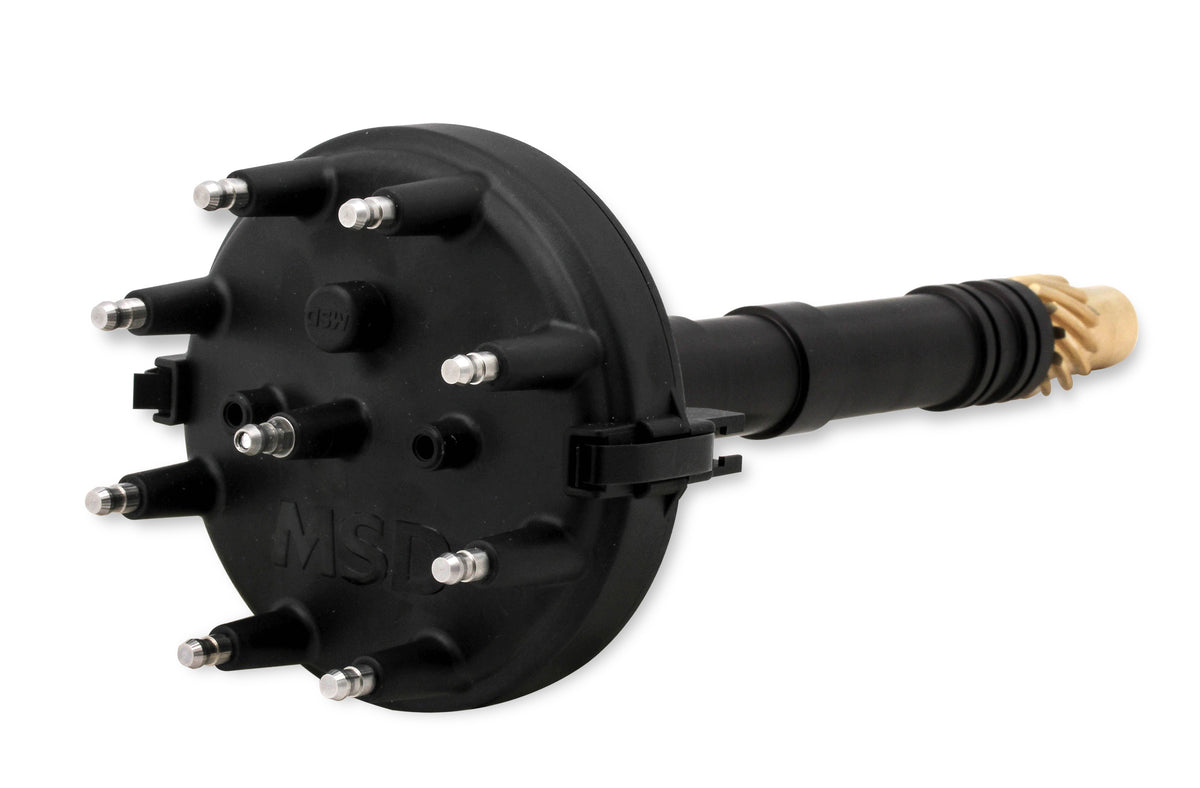

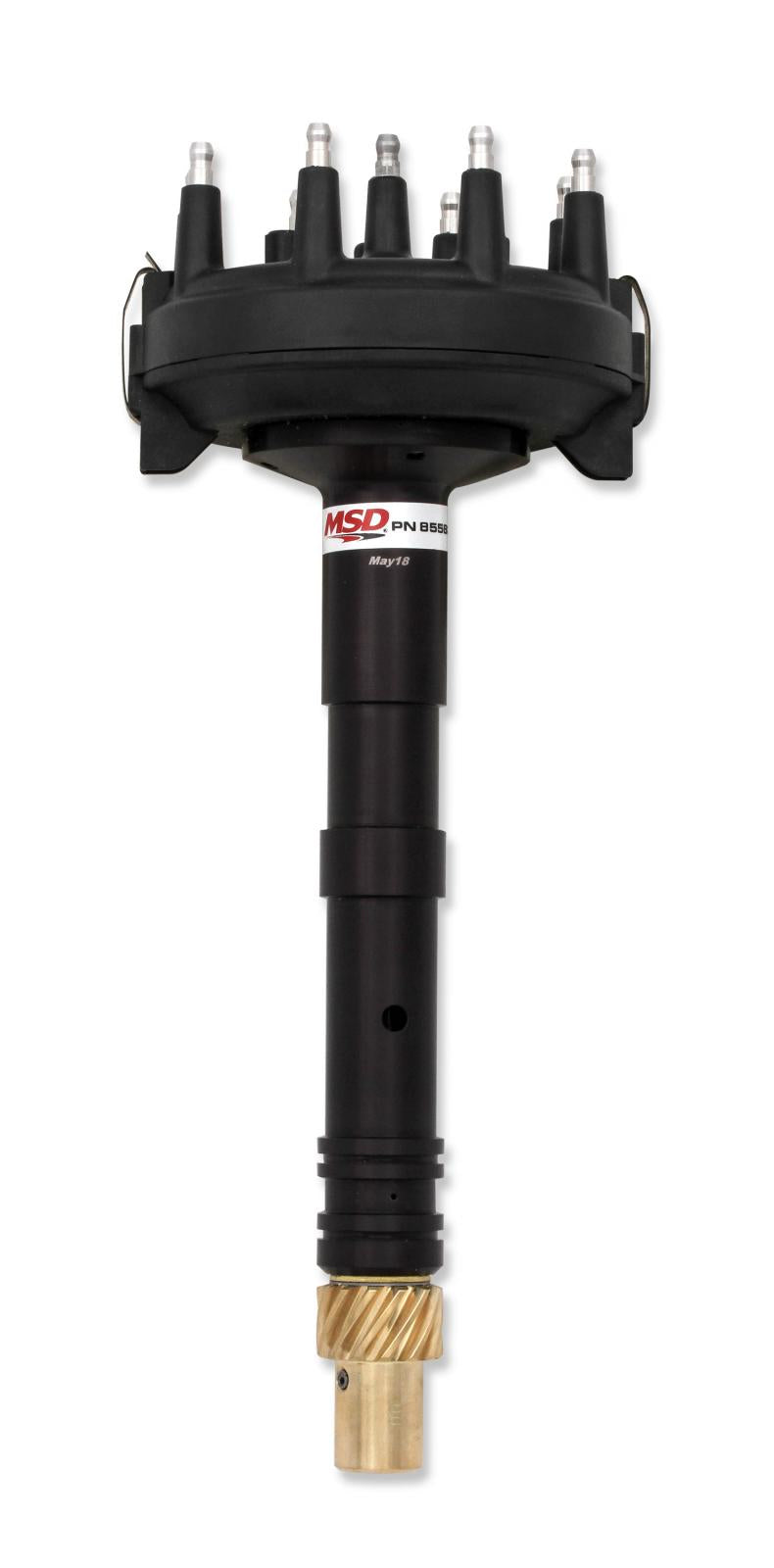

Tall Block Chevy V8 Crank Trigger Distributor Distributor Designed For Race Applications Using MSD Crank Trigger Systems MSD Ignition

The high voltage carrying capabilities are the result of several features which have been designed into these low-profile distributors. This includes a large diameter cap with wide spaced terminals and an injection molded Rynite rotor with thick vanes to stir up the air inside the cap. The high dielectric Rynite base also prevents arcing to the billet housing.

• The Tall Block Distributor has a unique slip collar design. This allows the PN 8558 to fit in most tall block engines that have had the deck height modified.
• The unique design of these distributors fit tight intake systems while still transferring the high voltage of the MSD racing ignition to the spark plugs.
• Polished steel shaft with a QPQ coating for friction reduction

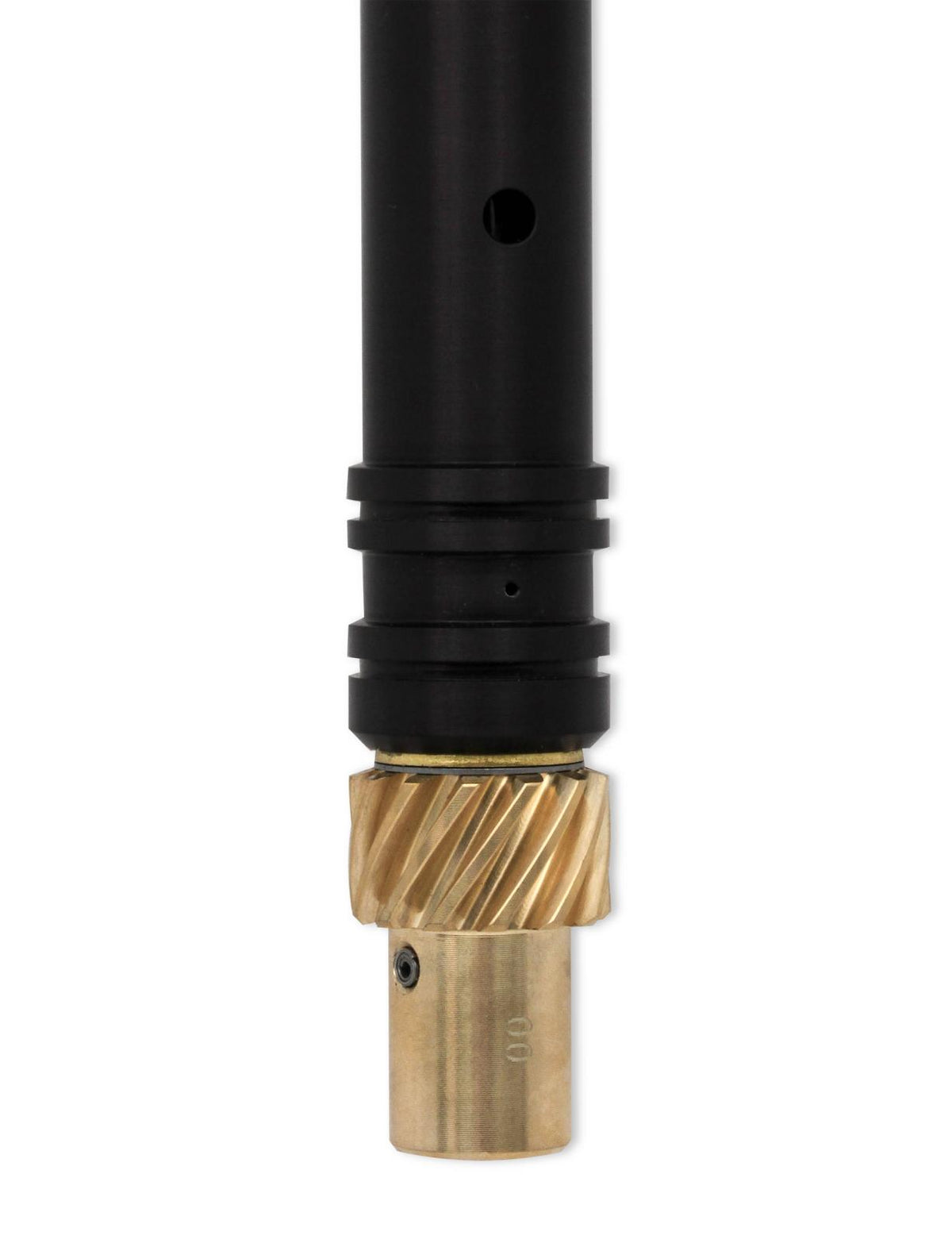

• Supplied with bronze gear for race cam applications

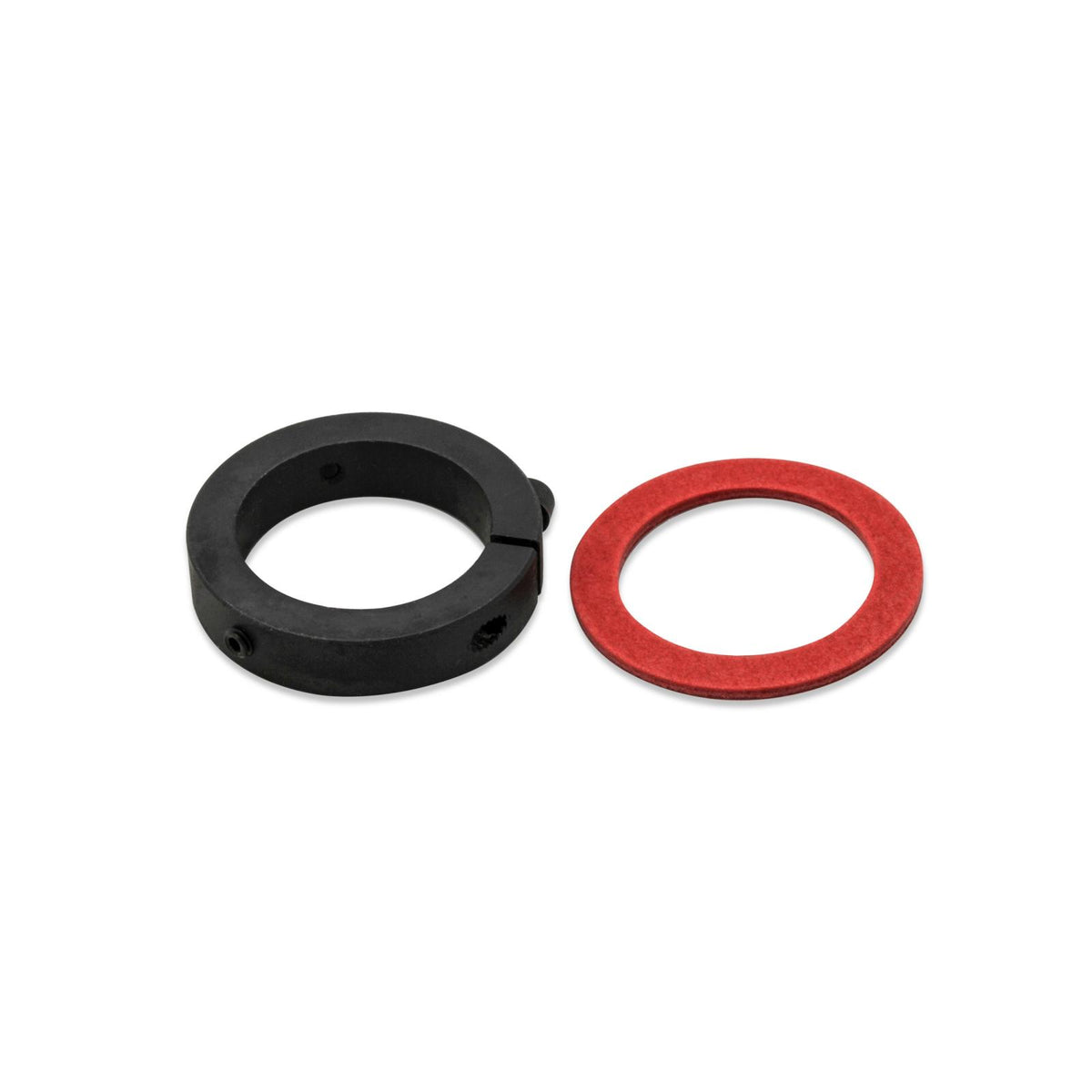

• Adjustable slip collar mounting flange for engines with modified deck heights
• Must be used with an MSD Crank Trigger and MSD Ignition Control
• Designed to fit low in the block to clear firewall and intake combinations
• Shaft is guided by a sealed ball bearing and an extra long sintered bushing

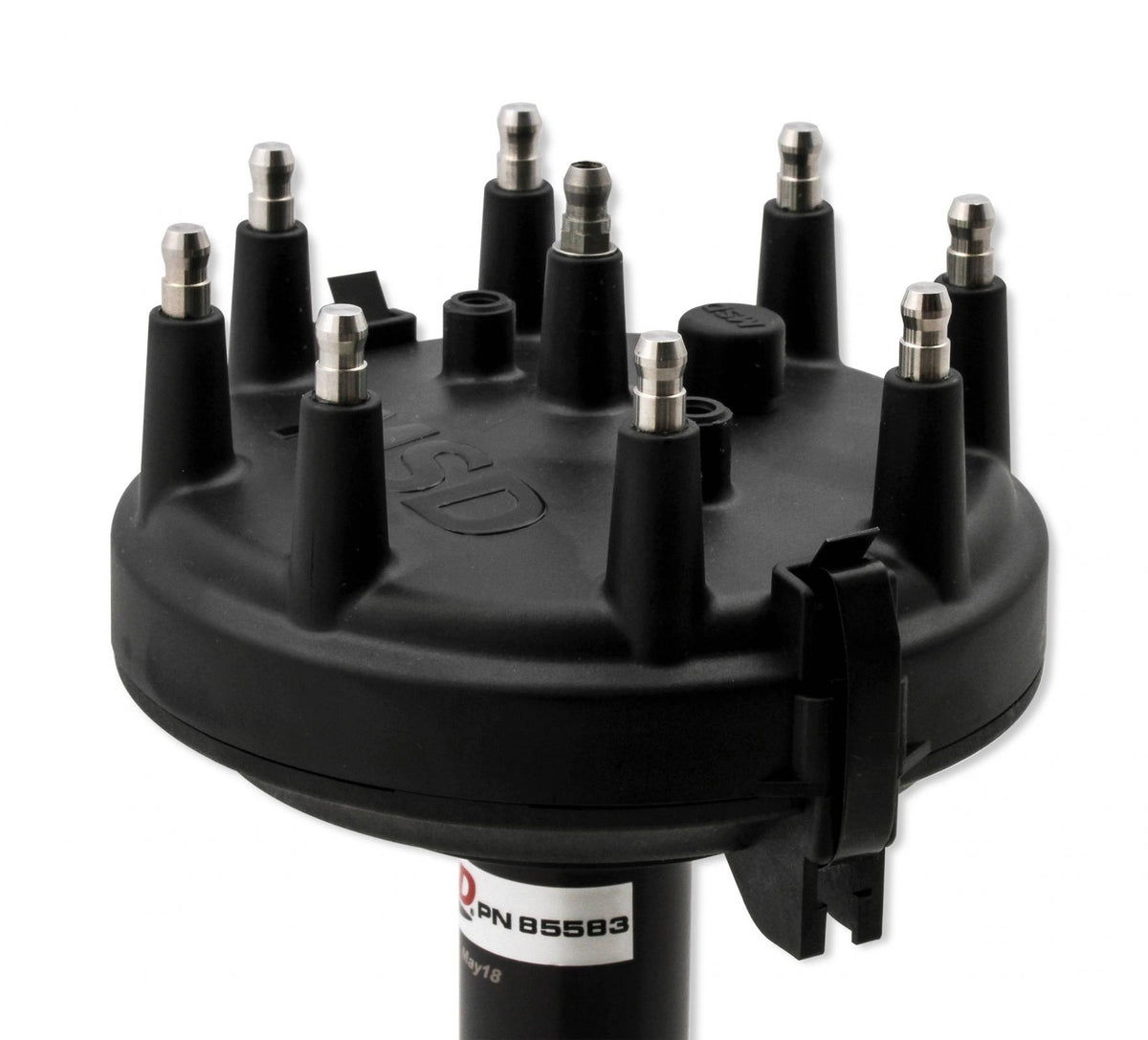

• Large diameter distributor cap to prevent spark scatter associated with high cylinder pressure engines

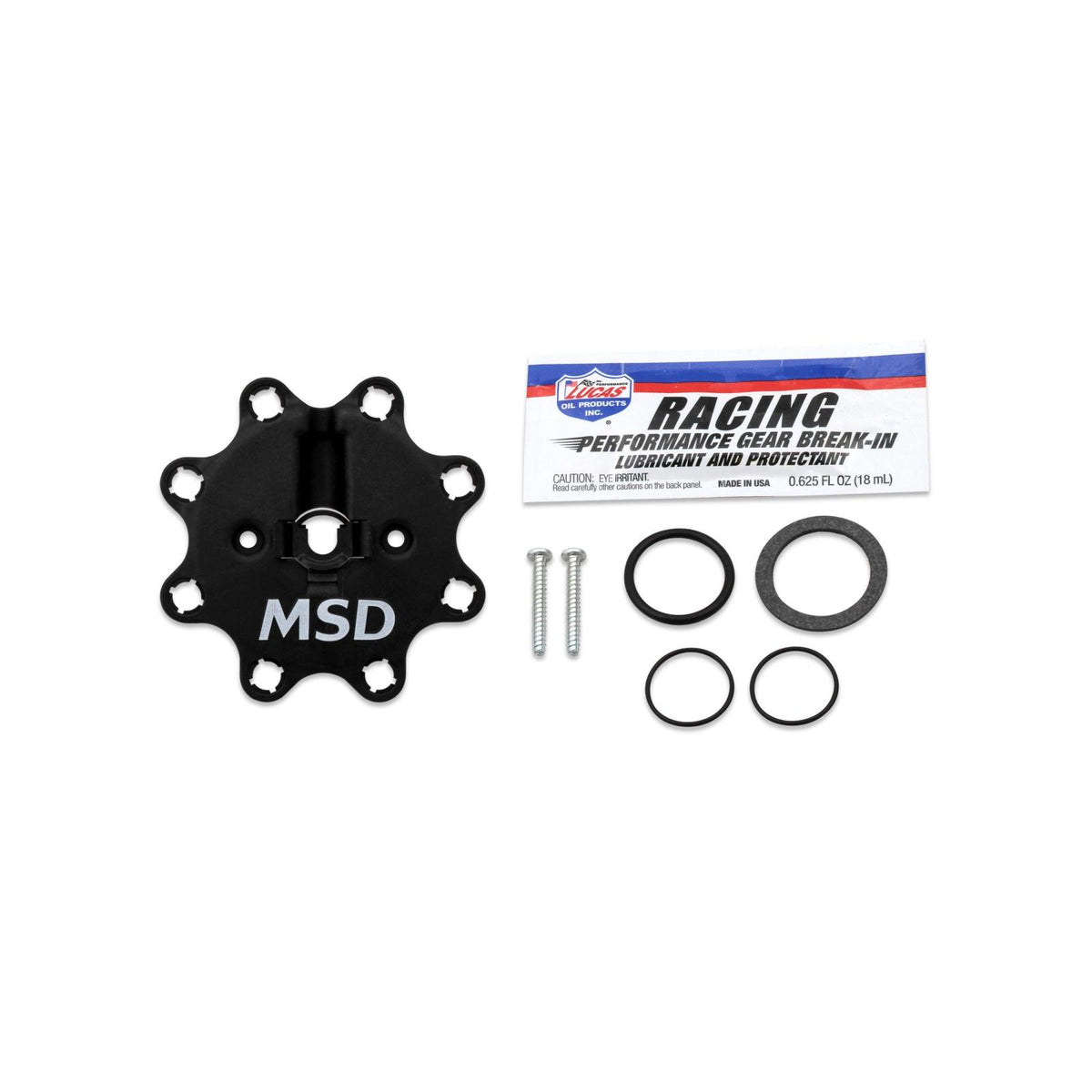

• O-ring seals can be added to modified blocks to improve oil pressure control
• Shaft is guided by a sealed ball bearing for long life and high RPM stability

Details:

• Distributor Cap Included: Yes
• Distributor Type: Crank Trigger
• Emission Code: 4
• Engine: Chevy Small and Big Block
• Gear: Bronze
• Gear Material: Bronze
• Ignition Box Required: Yes
• Ignition Coil Included: No
• Ignition Rotor Included: Yes
• Quantity: 1
• Warranty: Manufacturer's Limited 1 Year Warranty
