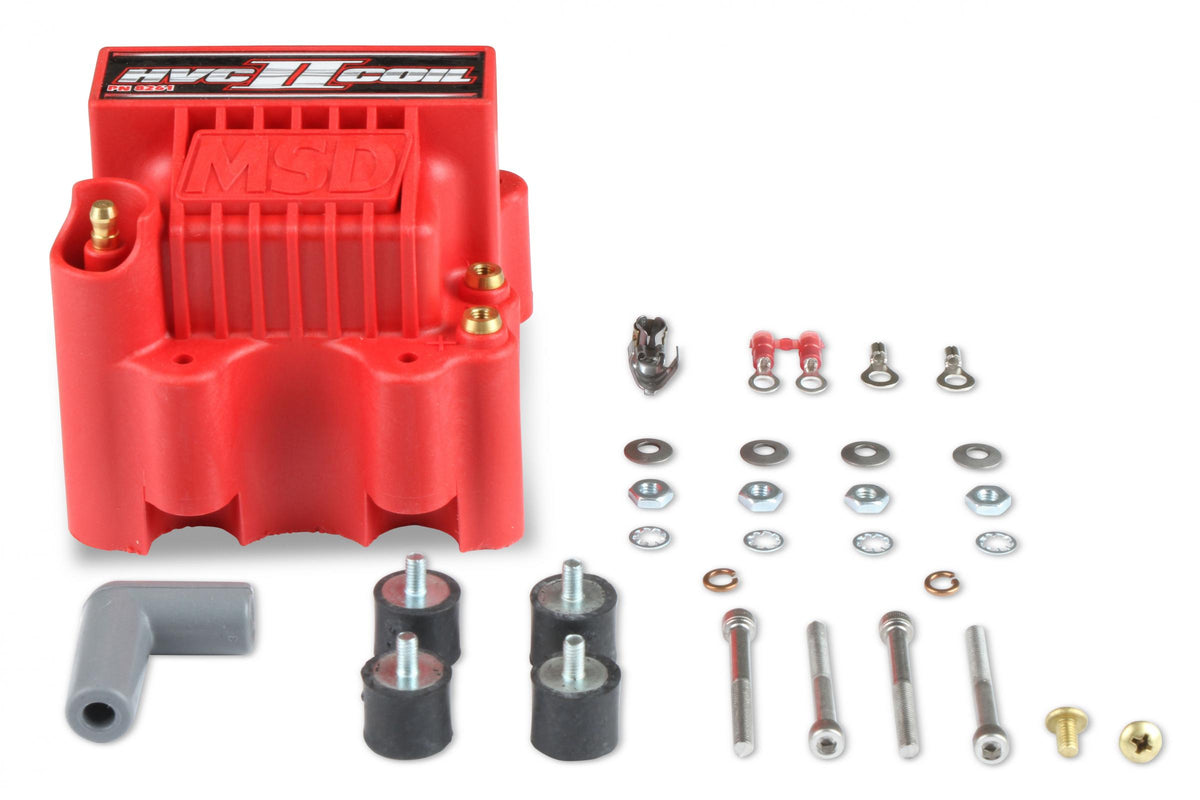

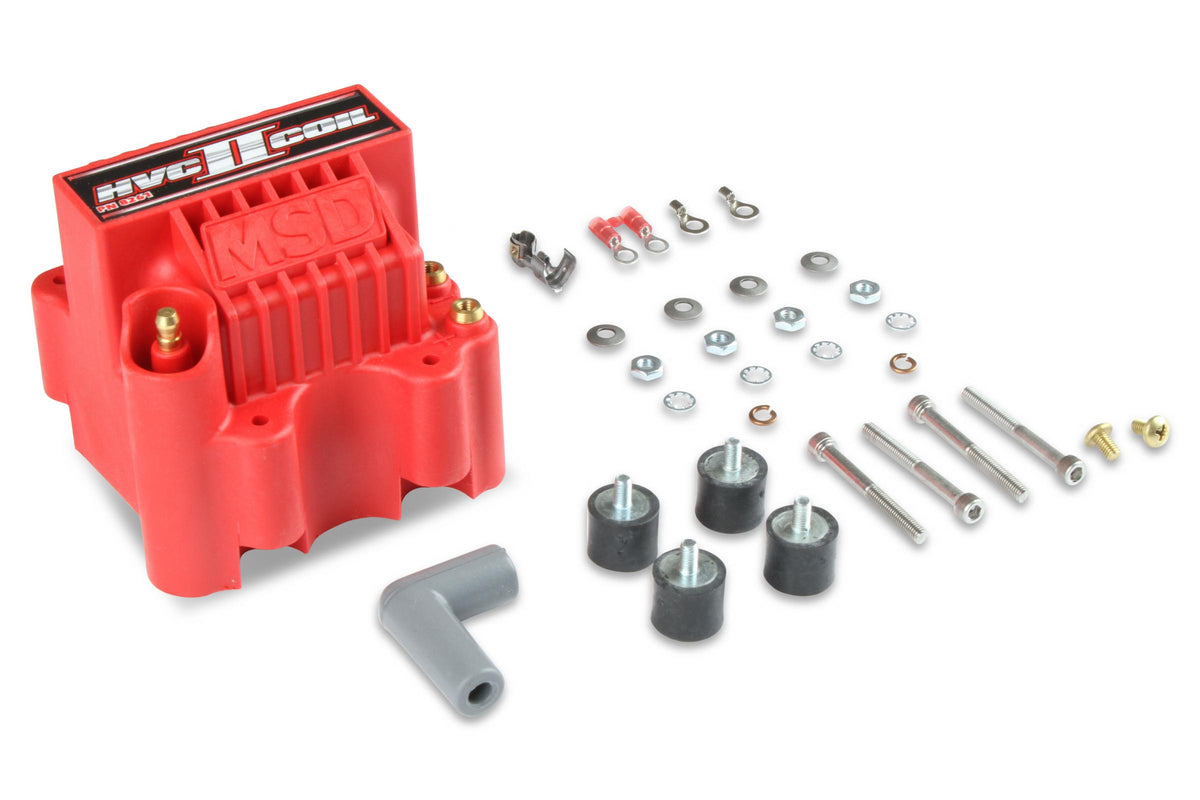

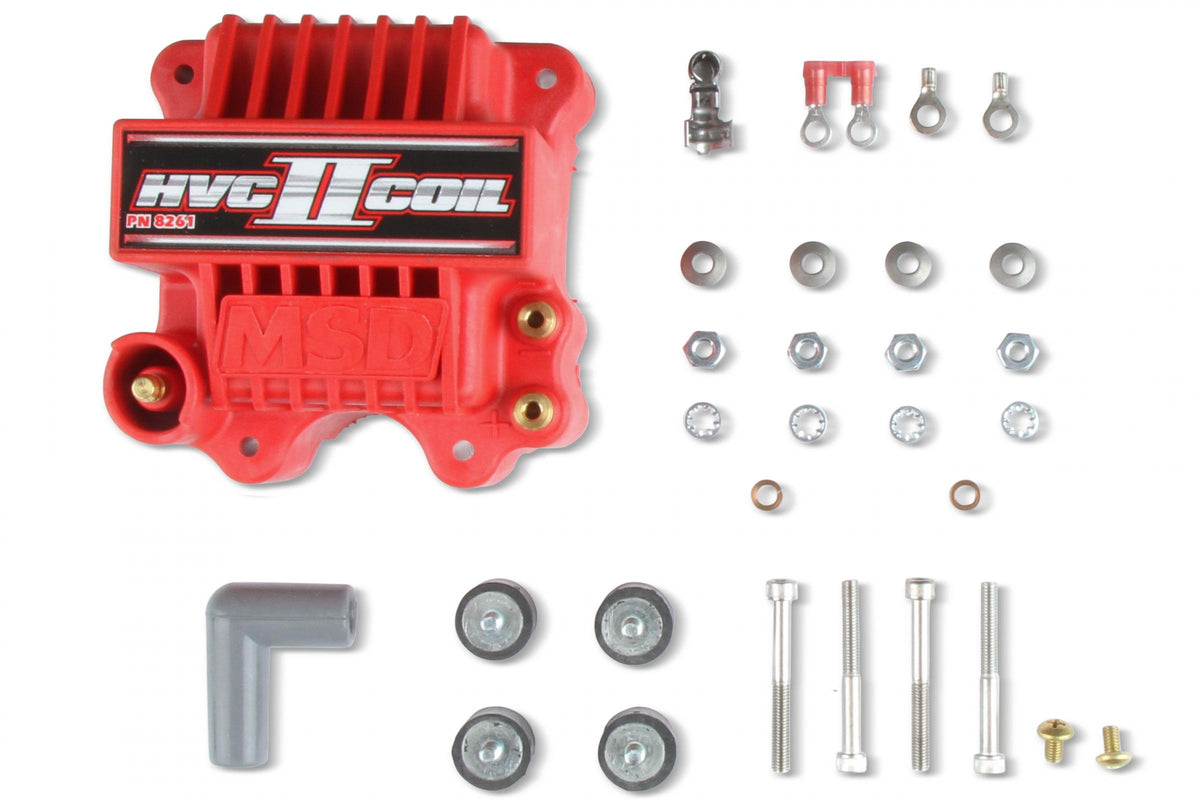

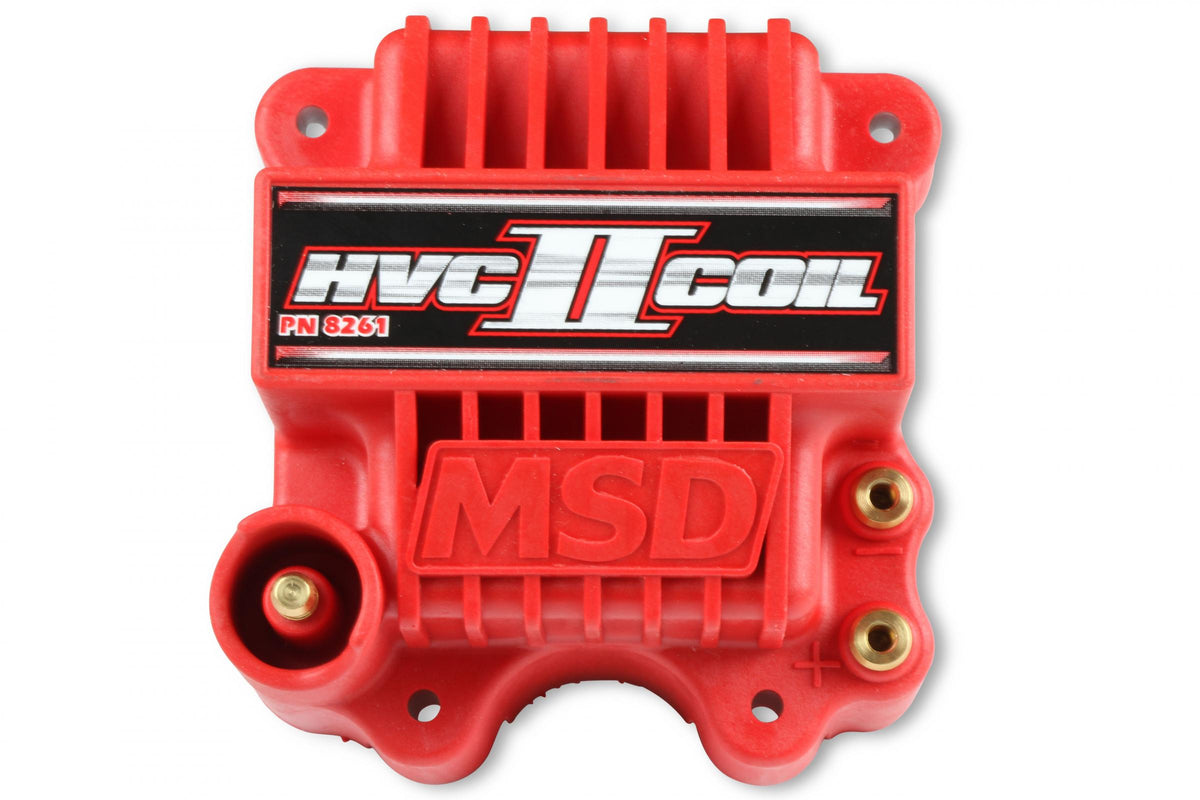

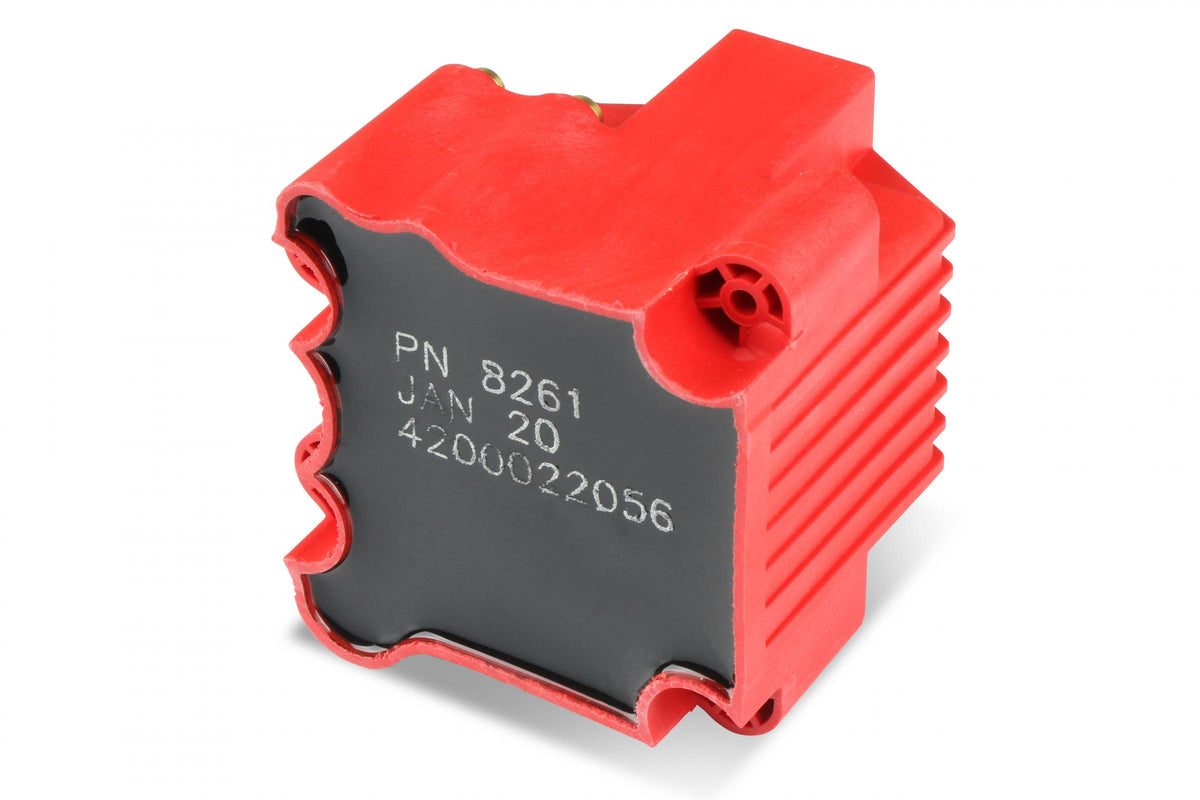

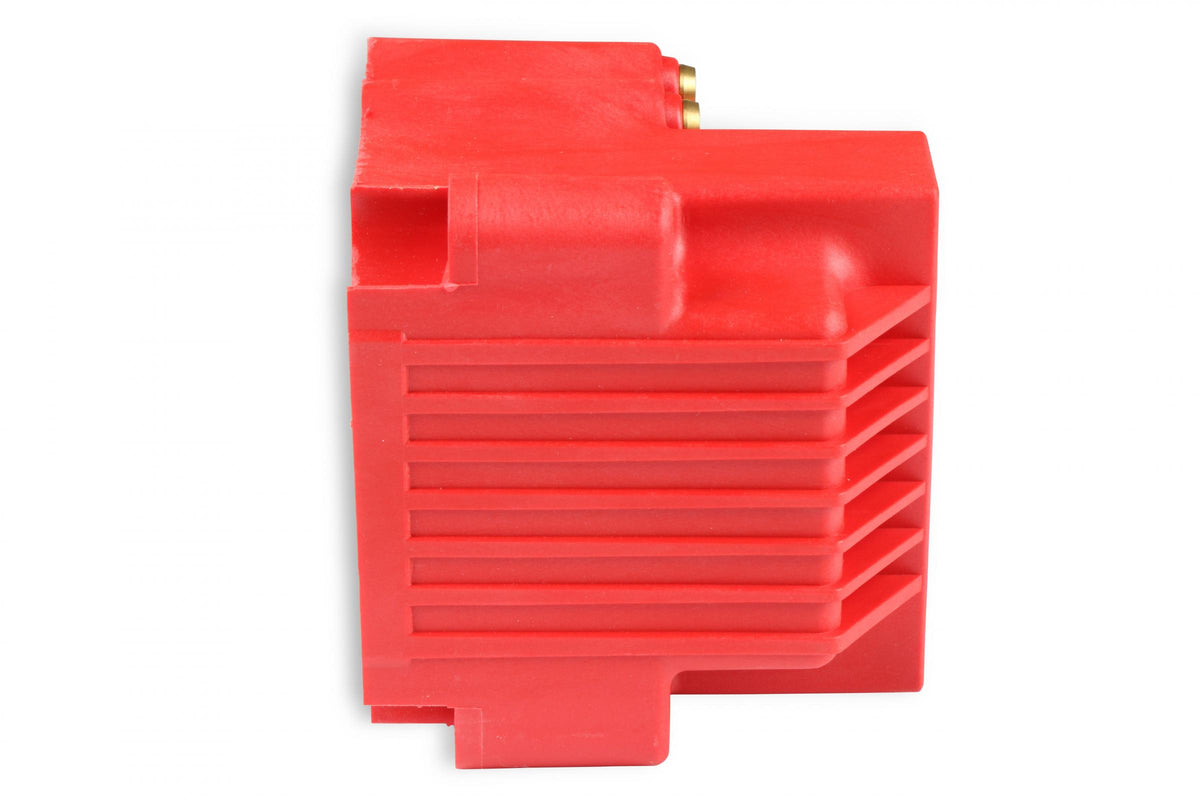

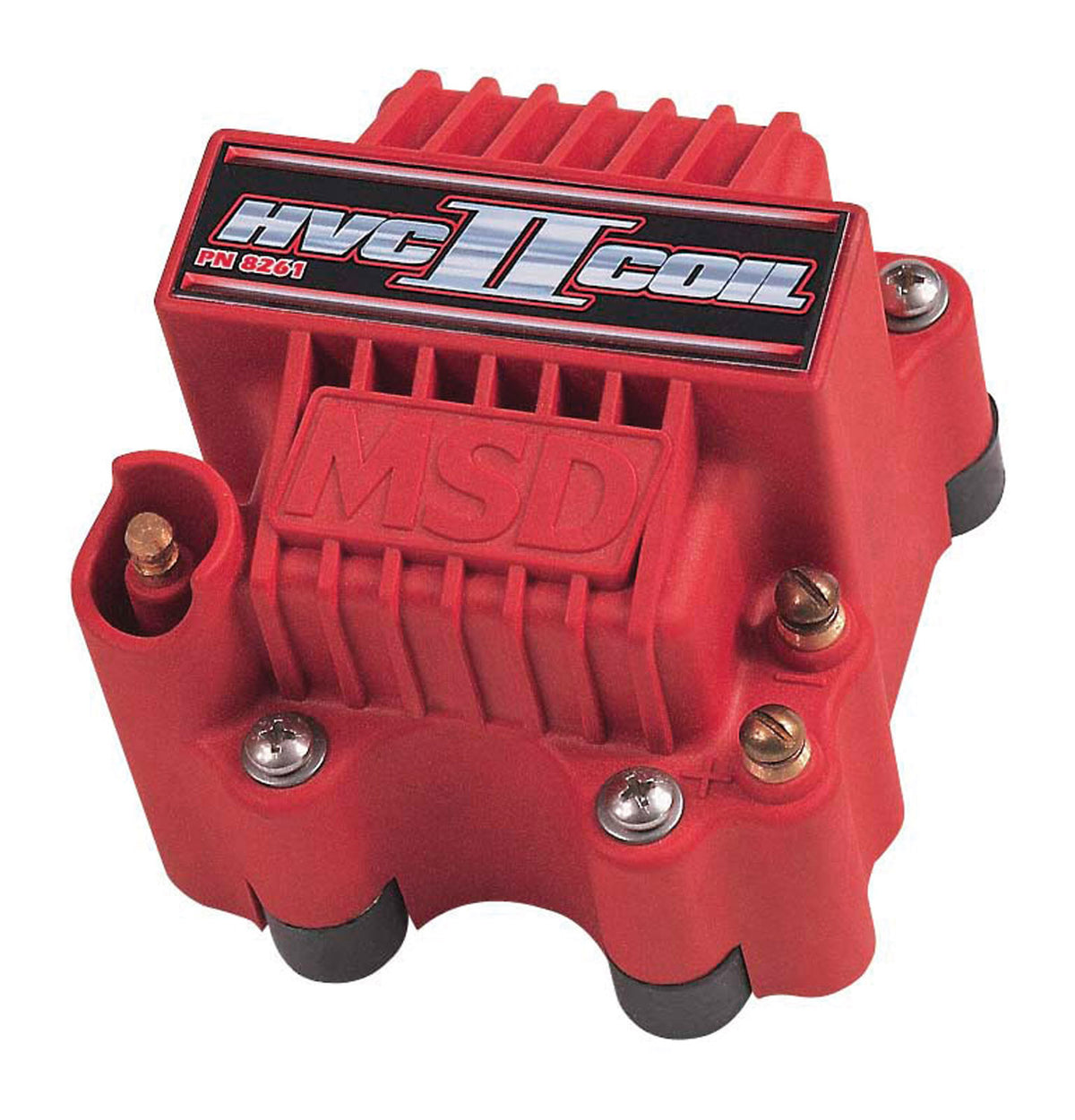

MSD Ignition Coil Hvc-2 Series Red Universal Use With MSD 7 Or 8 Series Ignition Control MSD Ignition

The HVC II Coil is completely built in-house so our engineers have exclusive control over their performance and quality. The Coil utilizes an iron U-Core design with a segmented bobbin for improved voltage distribution. The bobbin is molded from Dupont Rynite FR946 material which has incredible dielectric capabilities at high temperatures. MSD also incorporated a cutting edge winding material that has an improved insulation and is also capable of enduring extreme voltages. Together, these materials create a durable coil with incredible voltage capabilities, lightning quick rise time and lengthy spark duration.

• Windings are encased in fracture resistant compound for vibration resistance

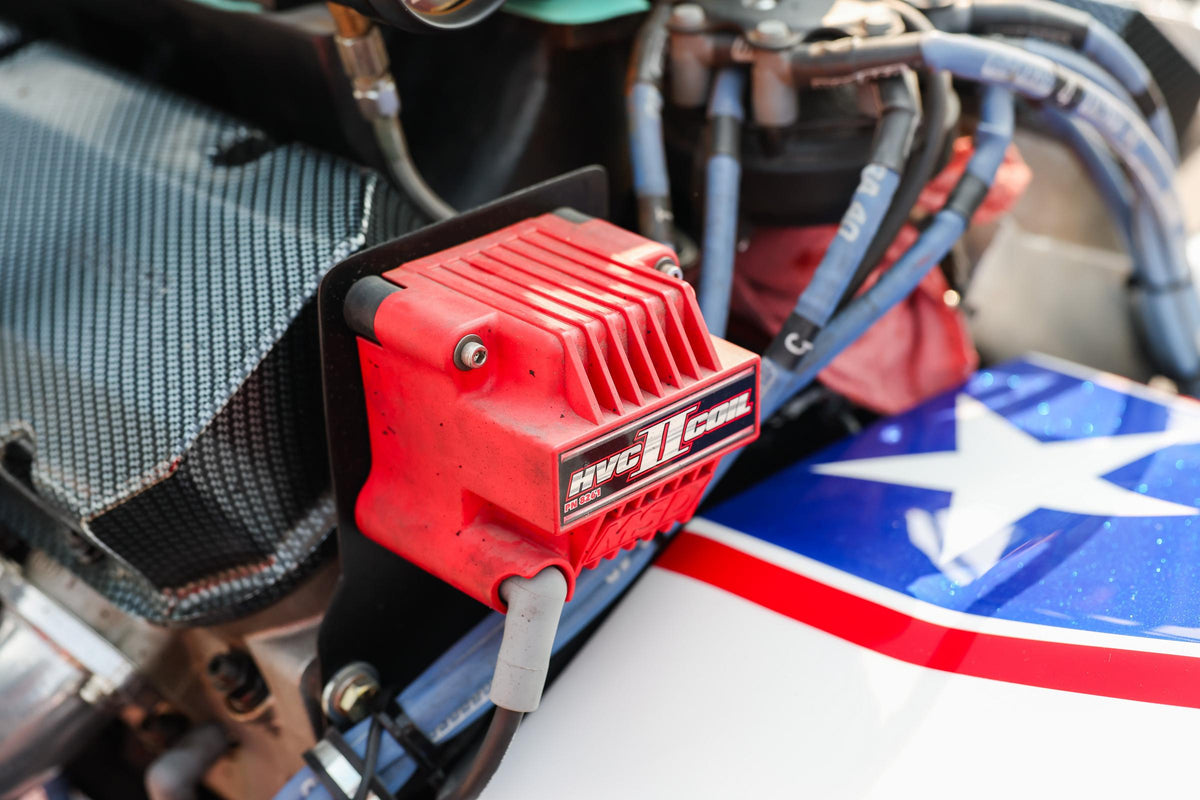

• Designed for racing applications with an MSD 7 or 8 Series Ignition Control
• New U-core winding design produces more voltage and current

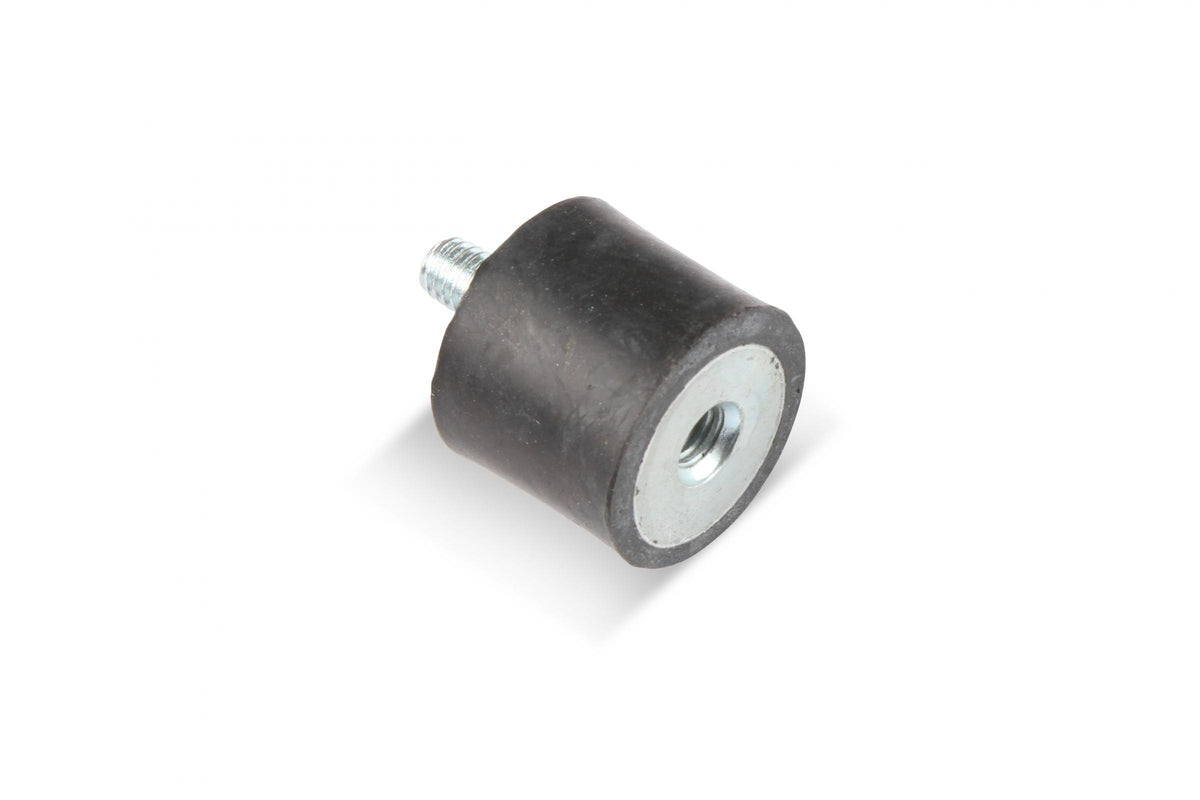

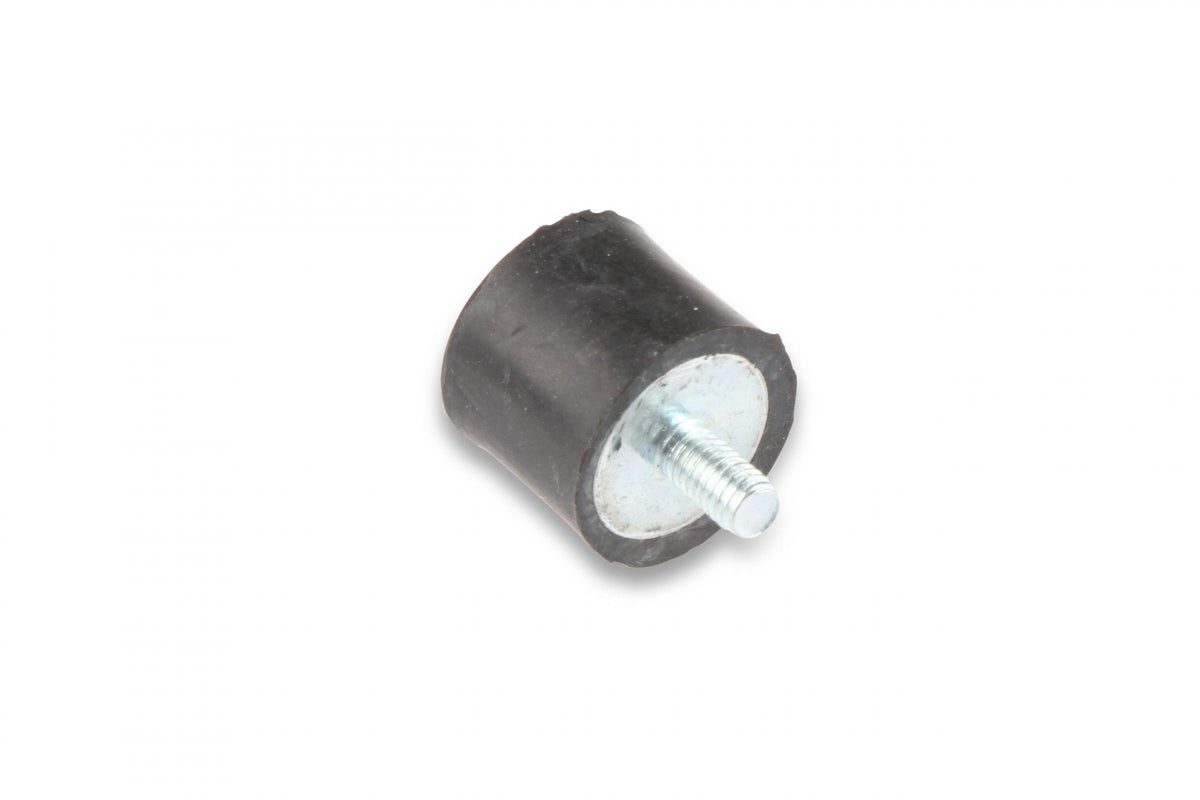

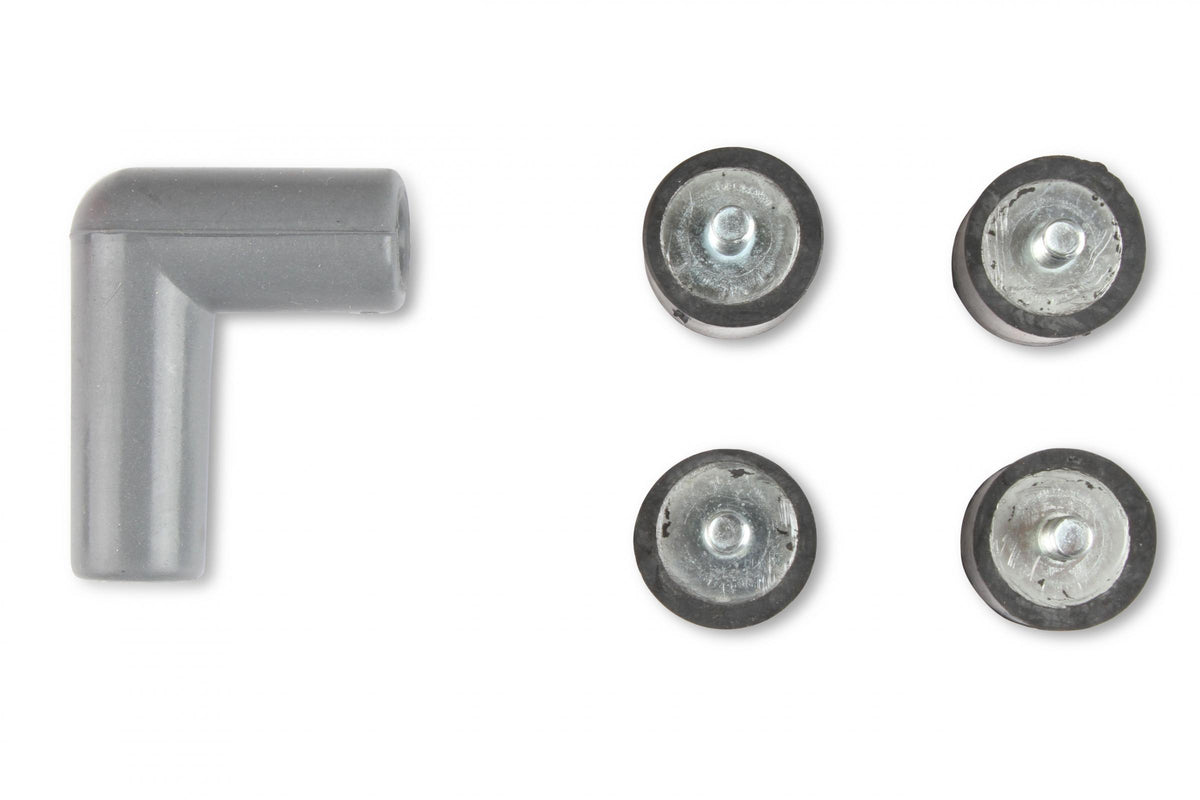

• Supplied with rubber shock mounts

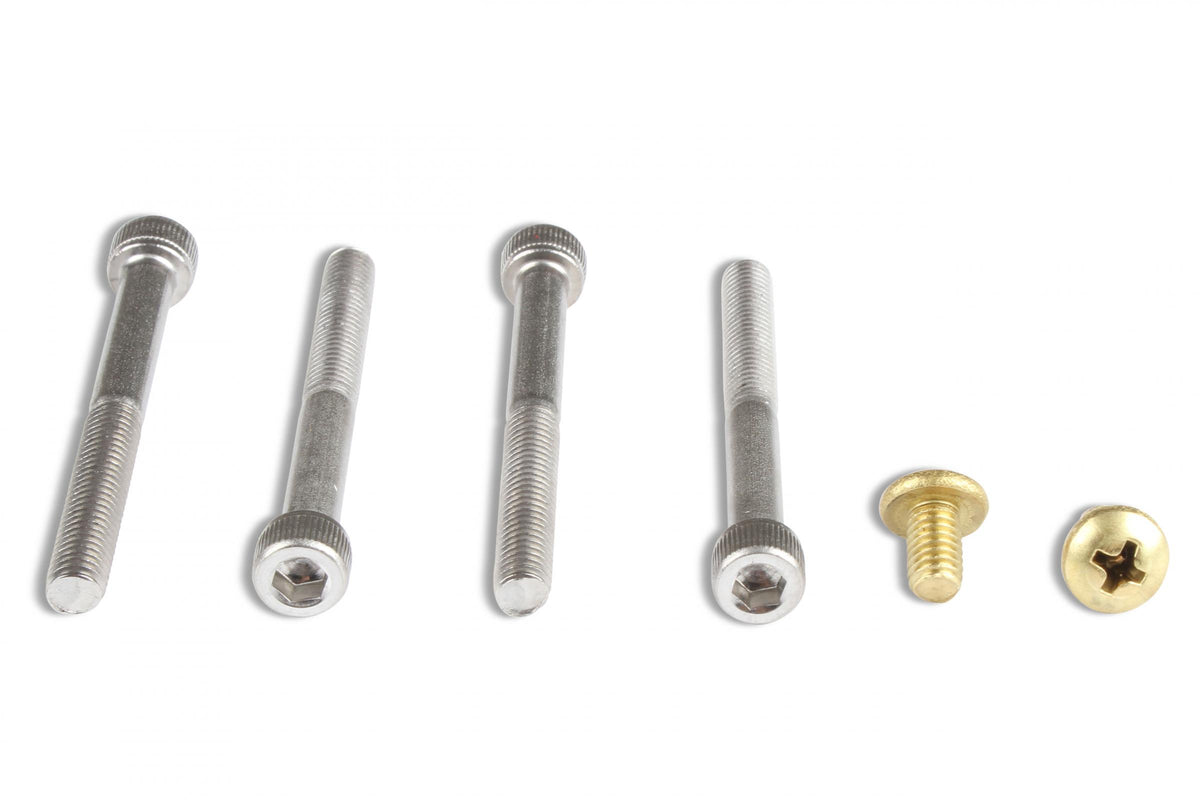

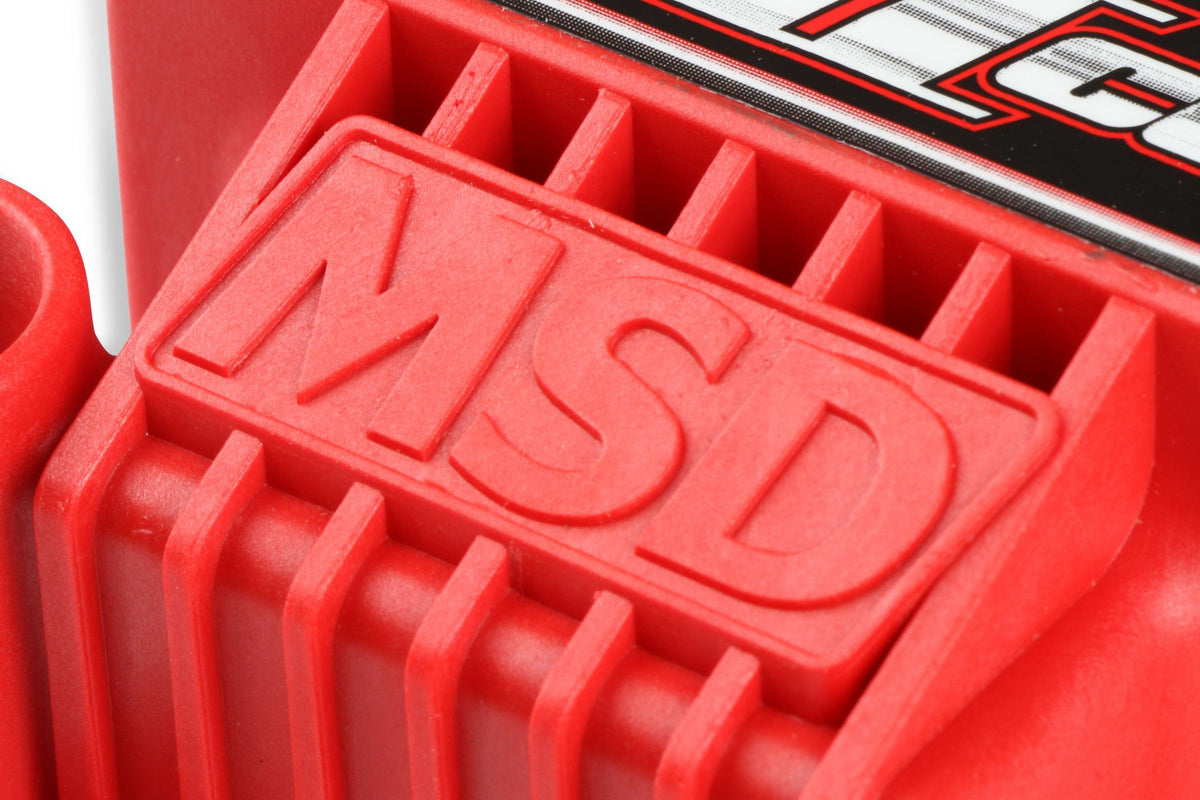

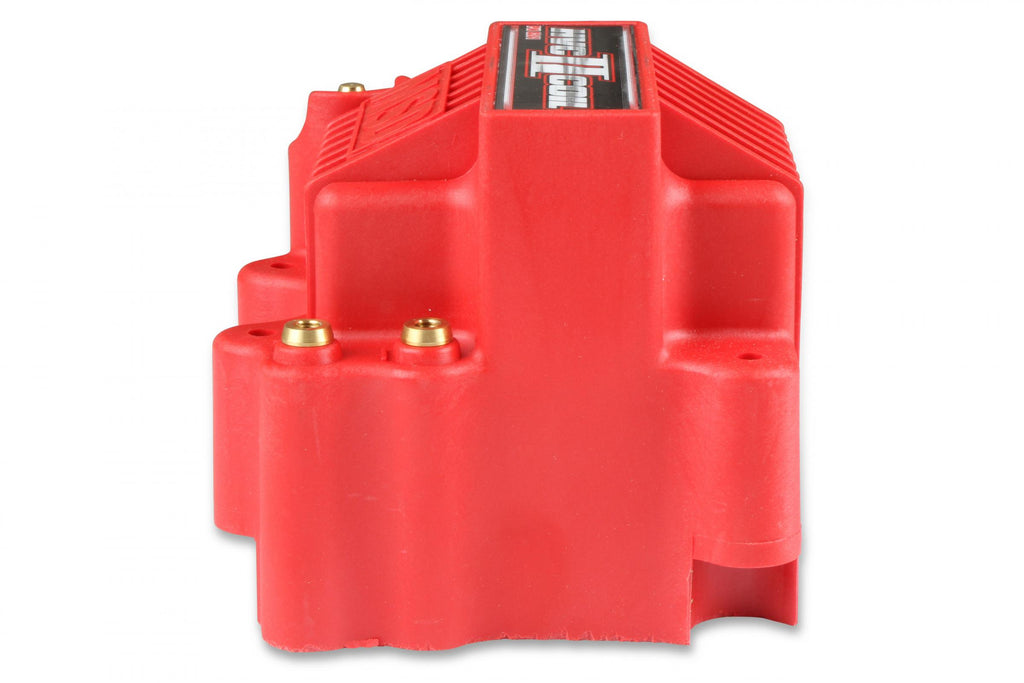

• Dupont Rynite housing with isolated tower and brass primary terminals
• 70:1 turns ratio and lower primary resistance produce high voltage output

Details:

• Emission Code: 4
• Inductance Mh: 0.25
• Maximum Voltage: 45,000
• Peak Current: 2.0
• Primary Resistance: 0.16
• Spark Duration: 0.15
• Turns Ratio: 2.92
• Warranty: Manufacturer's Limited 1 Year Warranty
