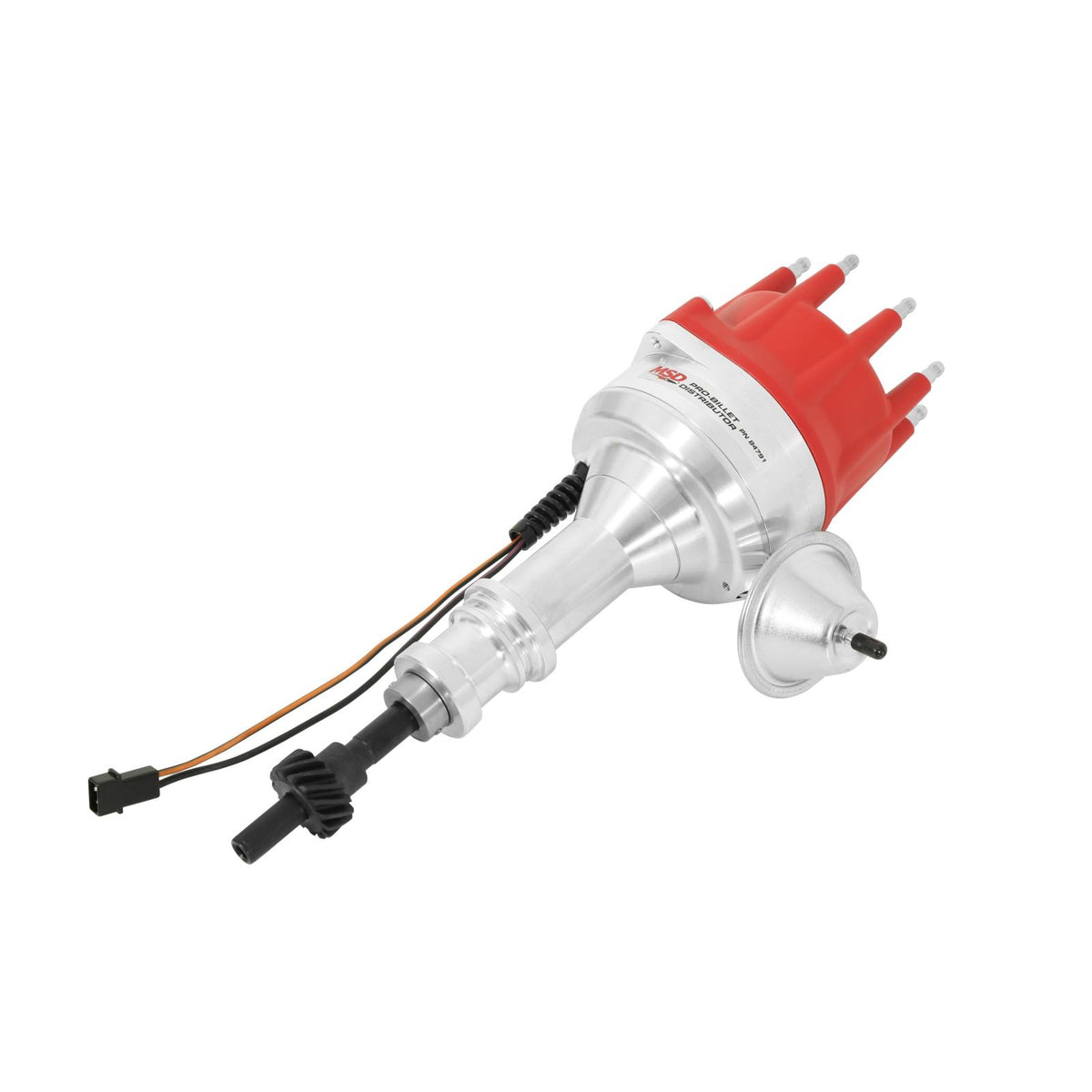

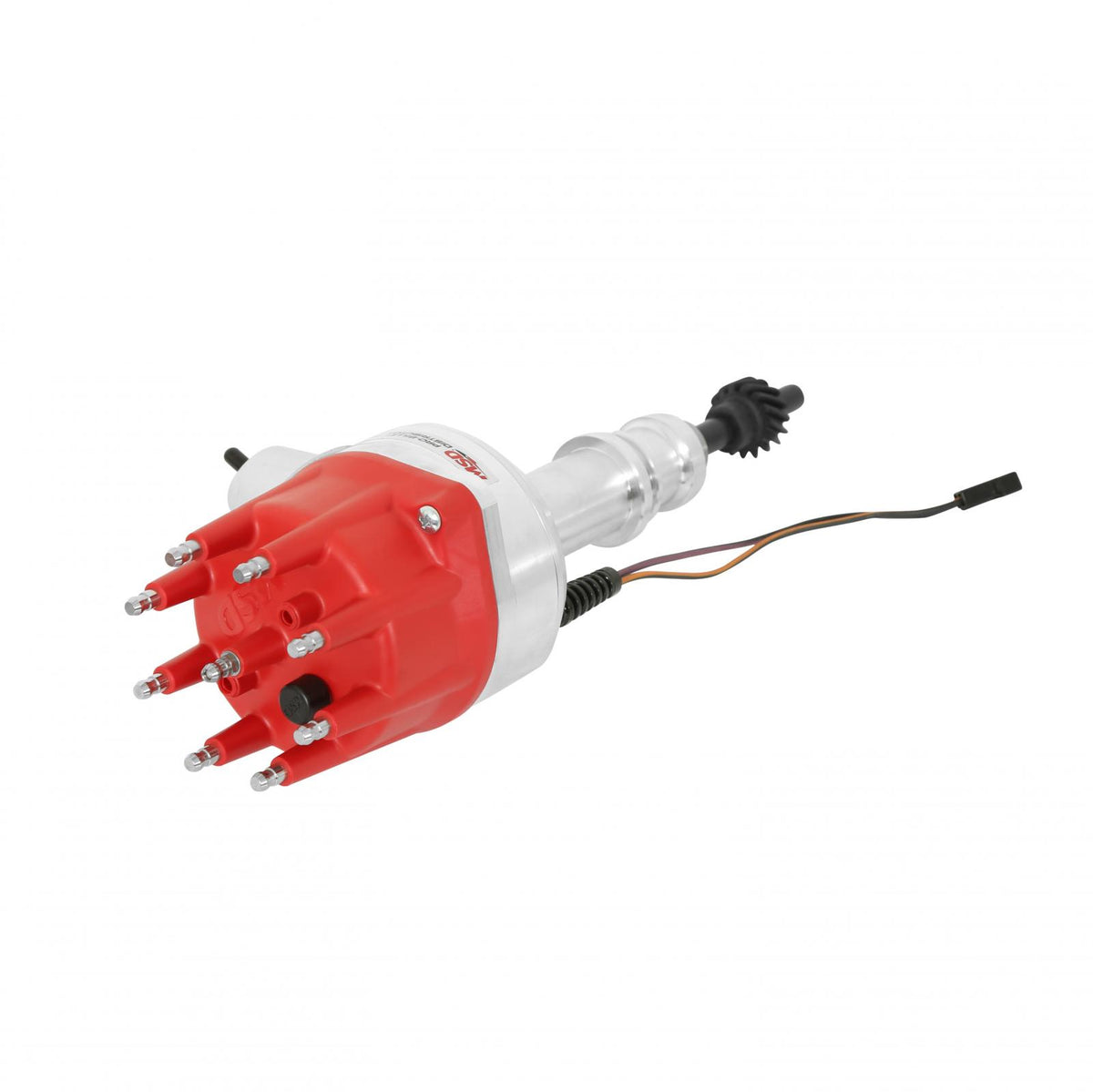

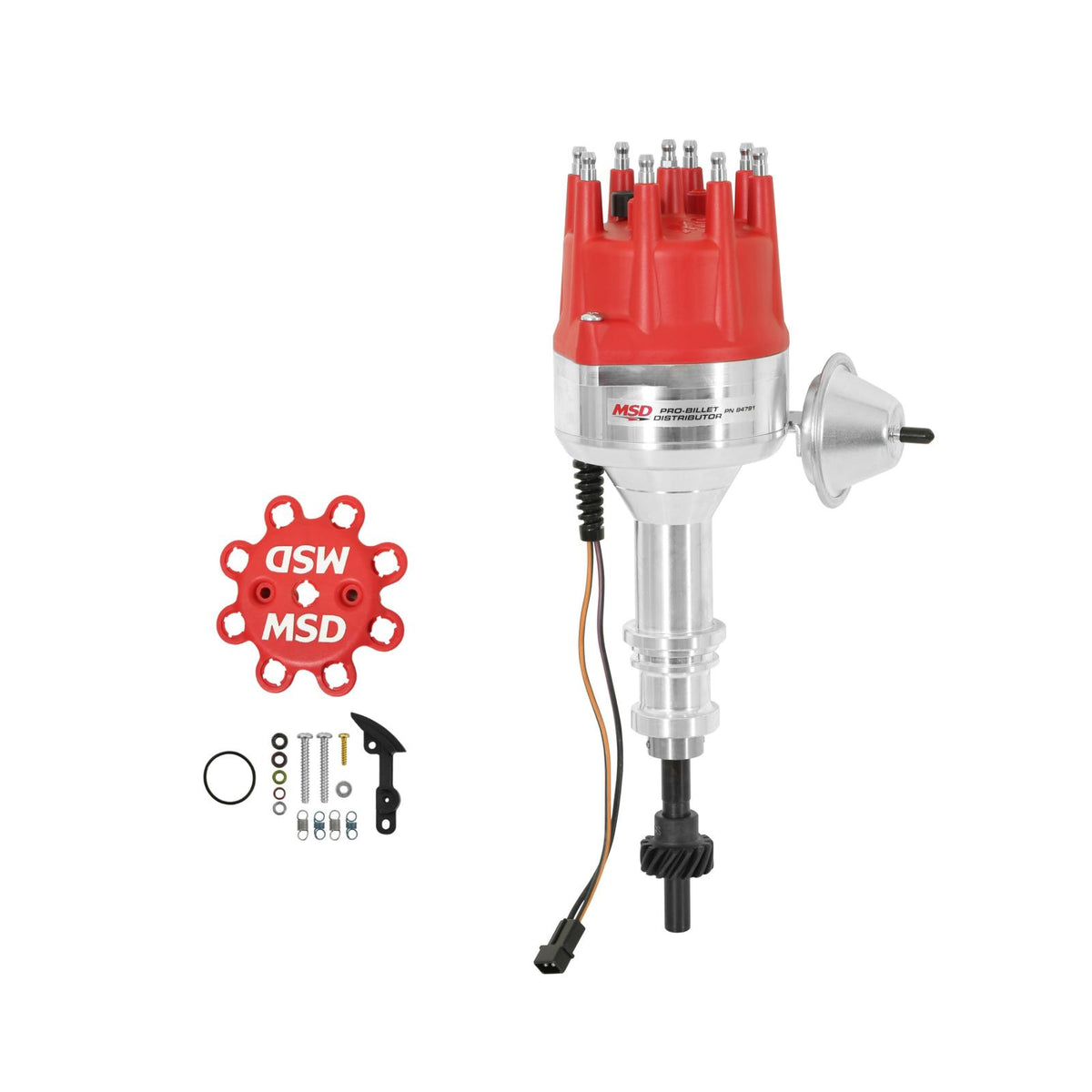

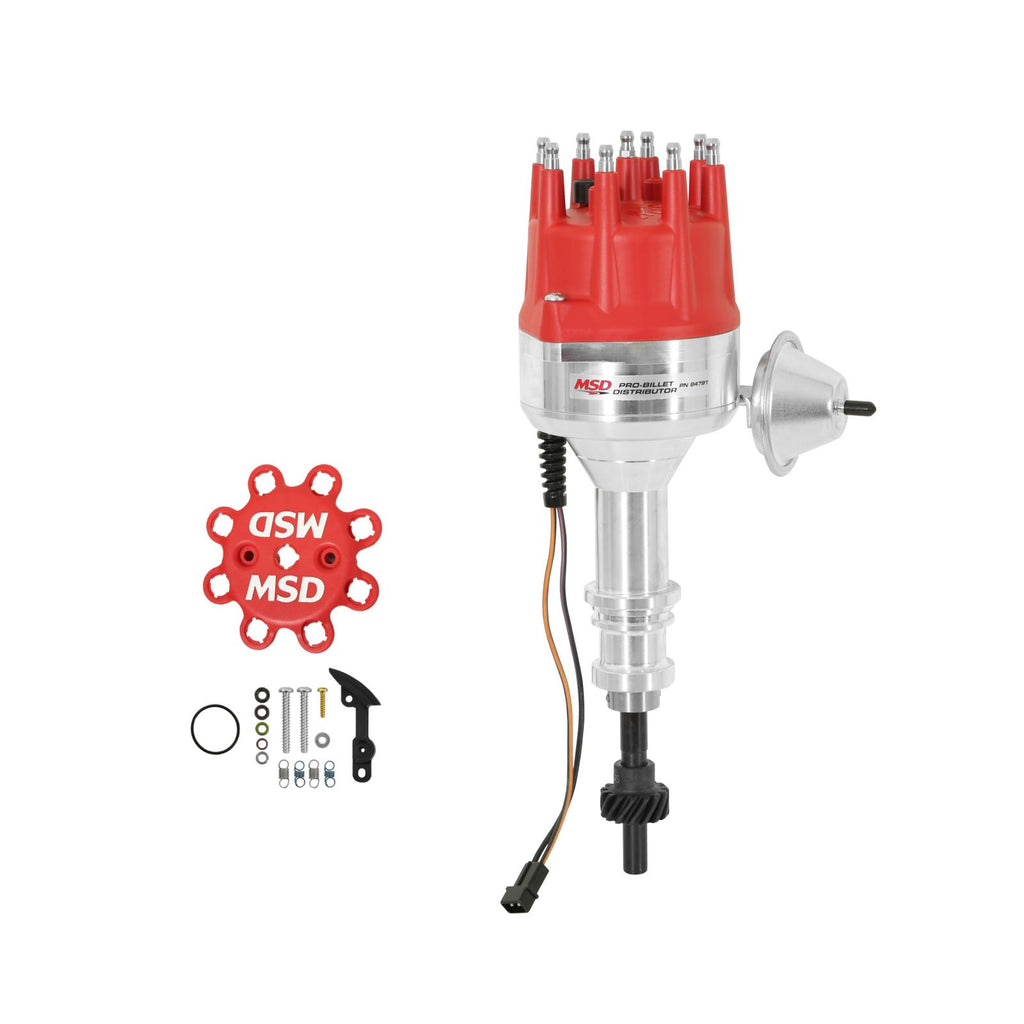

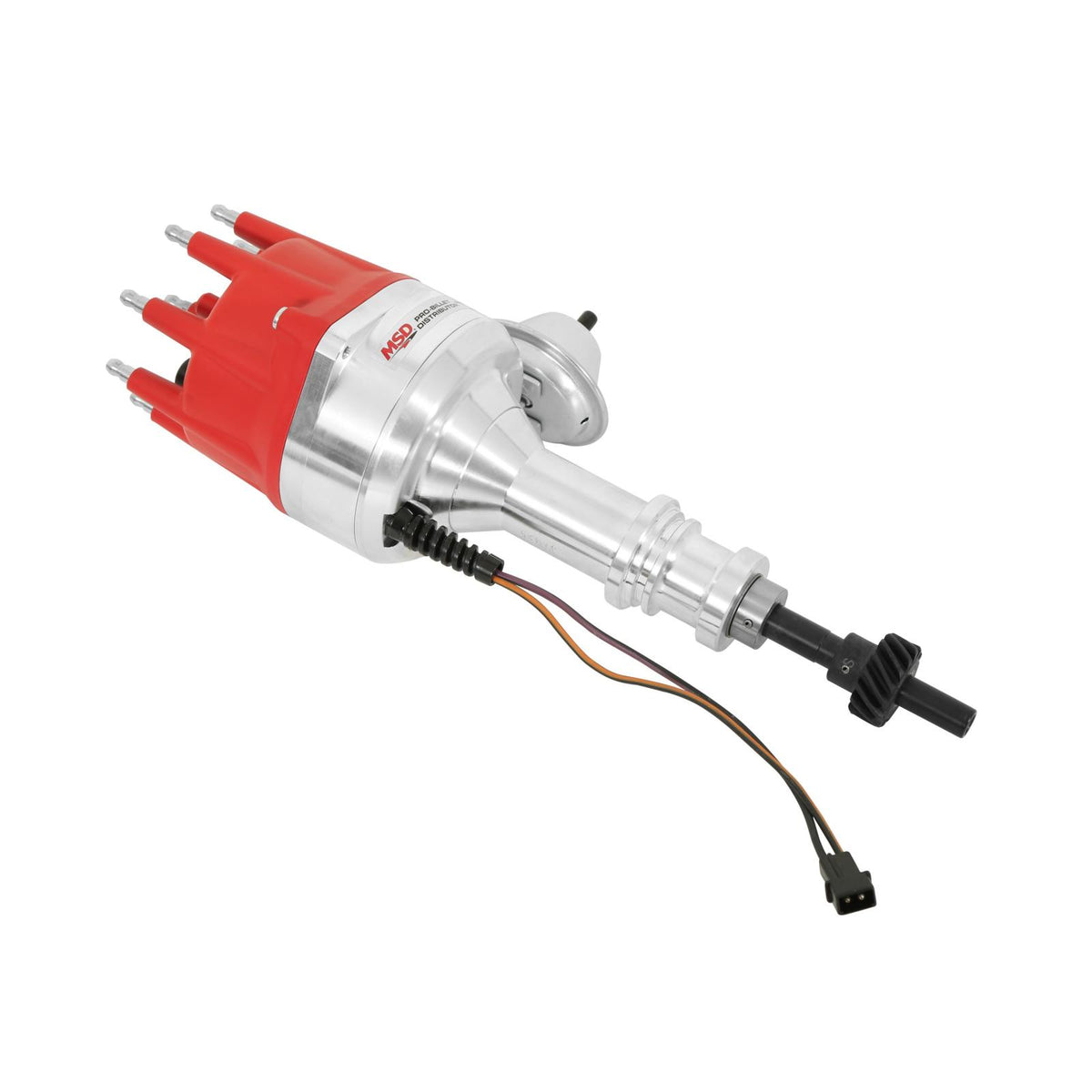

Ford 289/302 Street Pro-Billet W/Steel Gear Small Diameter Distributor For 289/302 Engines, Includes Steel Gear And Vacuum Advance. Must Be Used With An MSD 6, 7 Or 8-Series Ignition MSD Ignition

The Street Pro-Billet Distributors are the perfect choice for powerful engines that see plenty of street time. This canister provides improved economy and an accurate mechanical advance lets you dial-in an advance curve to match your driving needs. A magnetic pick-up produces accurate trigger signals that remain stable throughout the entire rpm range of your engine and is completely maintenance-free.

• Vacuum advance canister for improved economy (can be locked out)
• Supplied with small diameter cap with HEI style terminals and race rotor (will accept 8441 Cap-A-Dapt)

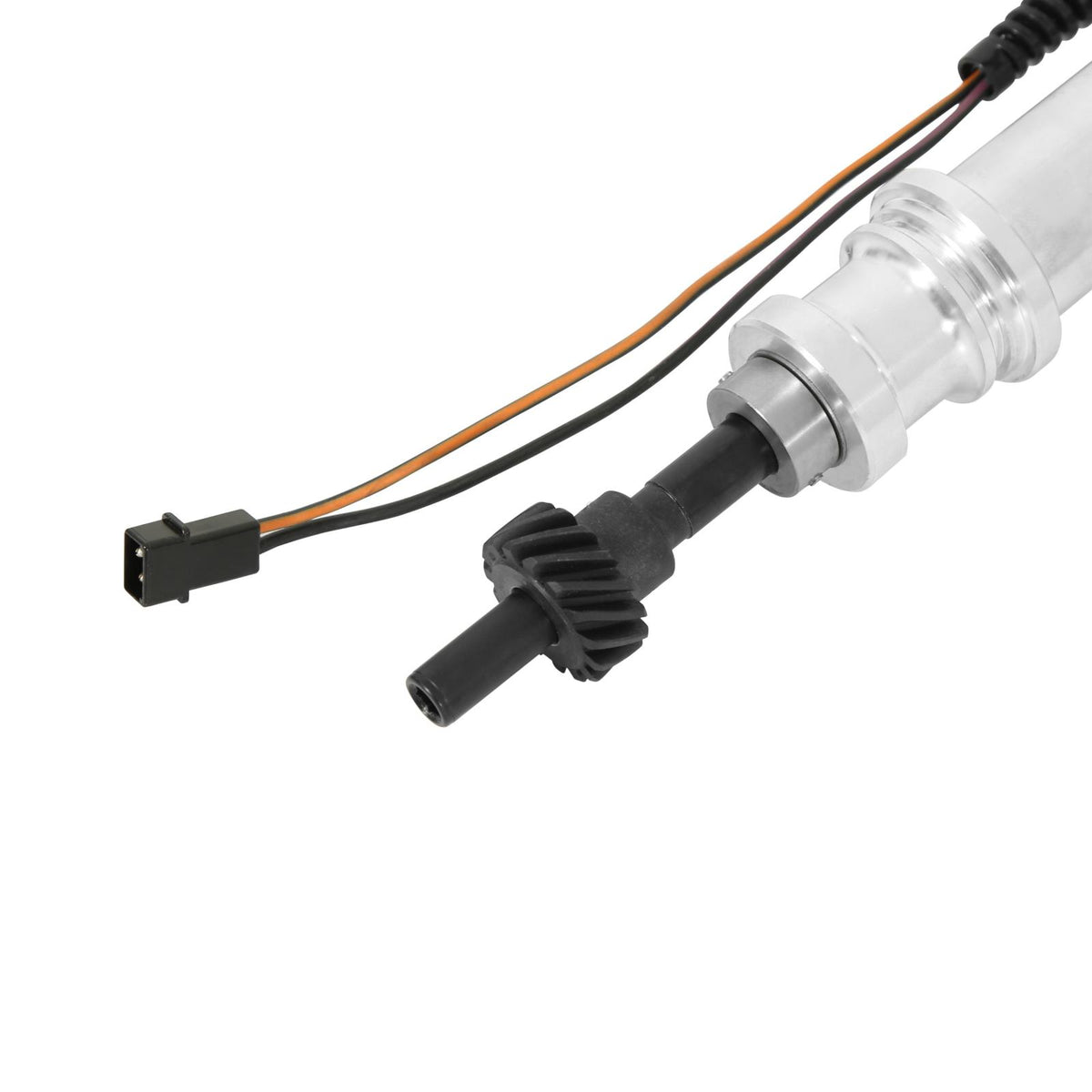

• Includes Steel Gear, compatible with hydraulic roller camshafts
• Advance weight pins are staked and tig welded to the plate
• Nylon pads ensure smooth operation of the advance weights

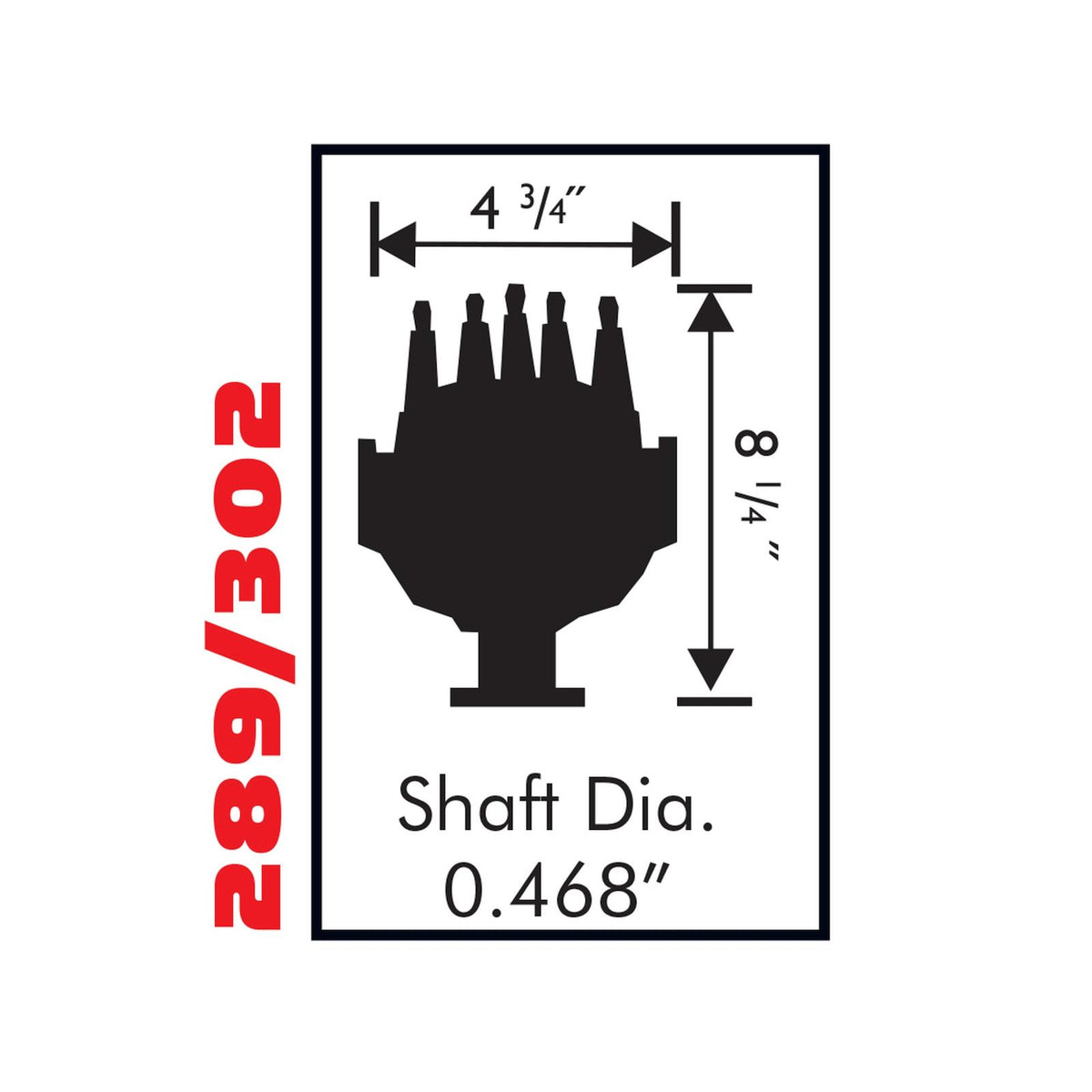

• Billet housing is 5/8” smaller in diameter than stock Ford distributors
• CARB E.O. Approved
• CNC machined billet aluminum housing and billet aluminum base
• Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
• Mechanical advance assembly can be locked out for crank trigger systems
• Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
• Must be used with an MSD Ignition Control
• Easy-to-adjust mechanical advance with supplied springs and stop bushings
• Polished steel shaft is QPQ coated and guided by a sealed ball bearing

Details:

• Distributor Cap Included: Yes
• Distributor Type: Magnetic Pickup
• Emission Code: 3
• Engine: Ford Small Block
• Gear: Steel
• Gear Material: Steel Melonized QPQ Coated
• Ignition Box Required: Yes
• Ignition Coil Included: No
• Ignition Rotor Included: Yes
• Warranty: Manufacturer's Limited 1 Year Warranty
