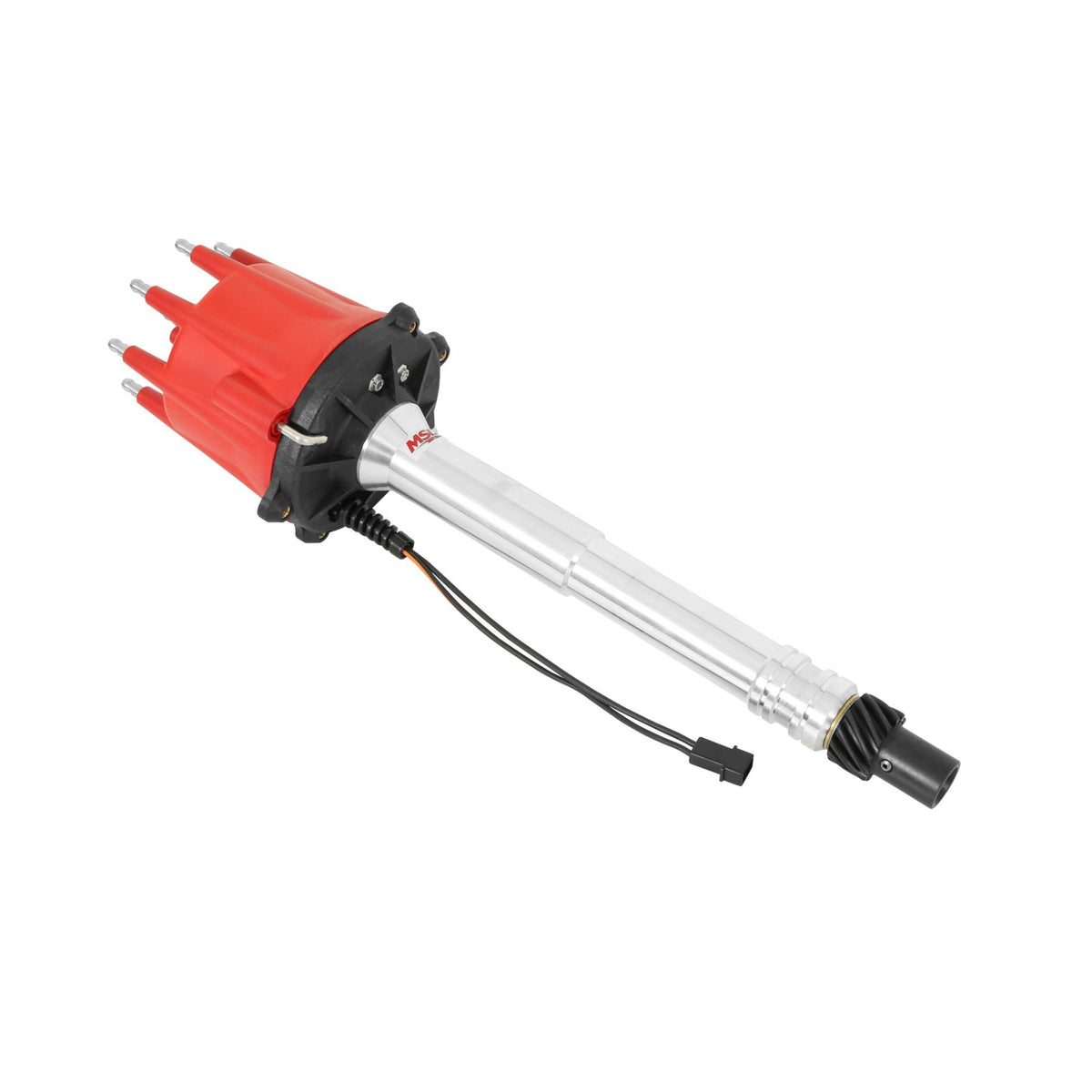

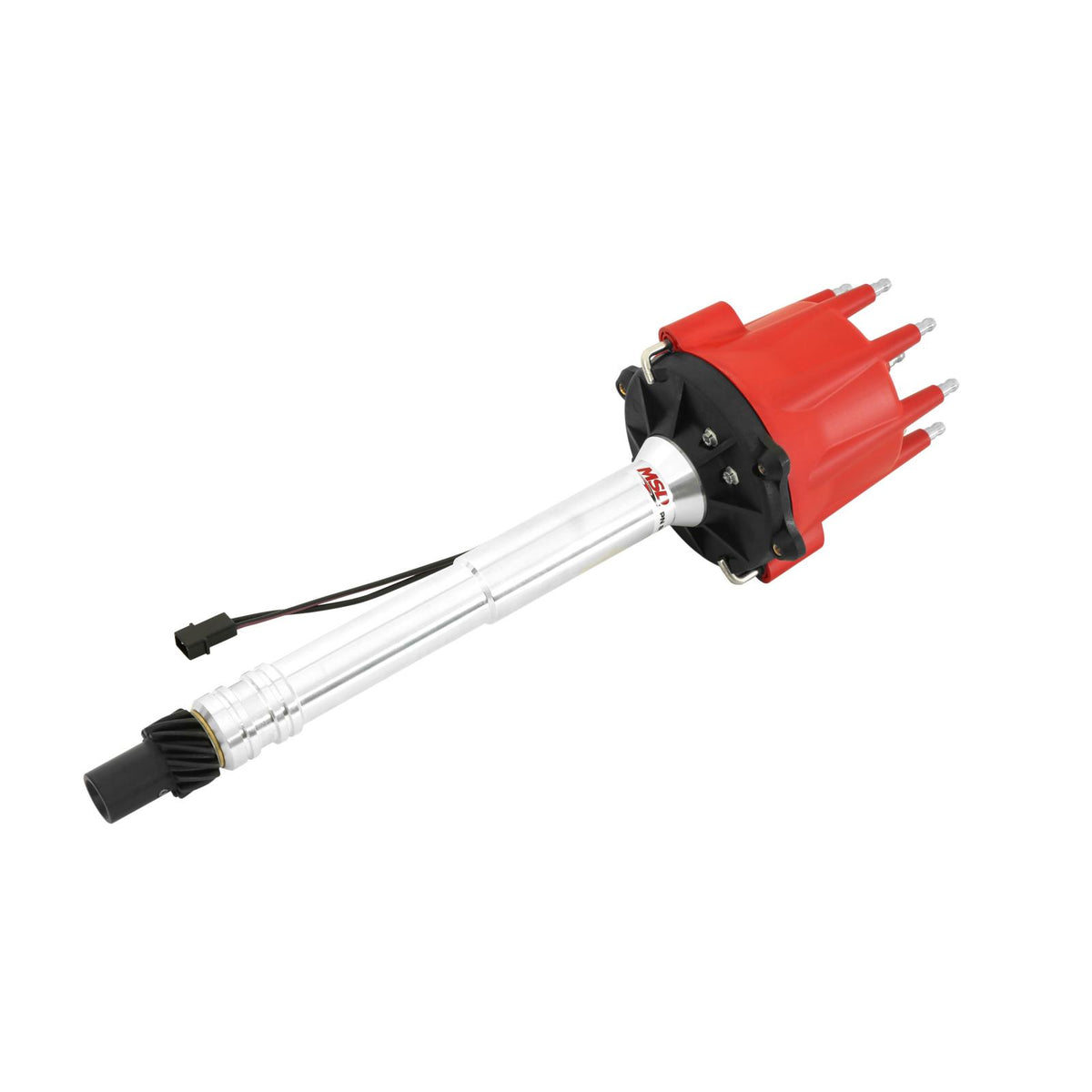

Chevy Extra Tall Slip Collar Pro-Billet Distributor Nearly Three Inches Of Adjustment. Must Be Used With An MSD 6, 7 Or 8-Series Ignition MSD Ignition

Designed for racing blocks with maximum increased deck height such as Alan Root, Merlin and Rocket Blocks. MSD offers this Distributor with an adjustable slip collar with nearly 3 Inch of adjustment so you can be sure the distributor is installed correctly.

• The distributor shares the same features of the standard Pro-Billet Chevrolet model including a ball bearing guide, long sintered lower bushing and an oil seal. To trigger the MSD Ignition a maintenance-free magnetic pick-up is secured in the billet base of the distributor. Just above this pick-up assembly is an adjustable mechanical advance assembly.
• O-ring seals can be added to modified blocks to improve oil pressure control
• Advance weight pins are staked and tig welded to the plate
• Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range

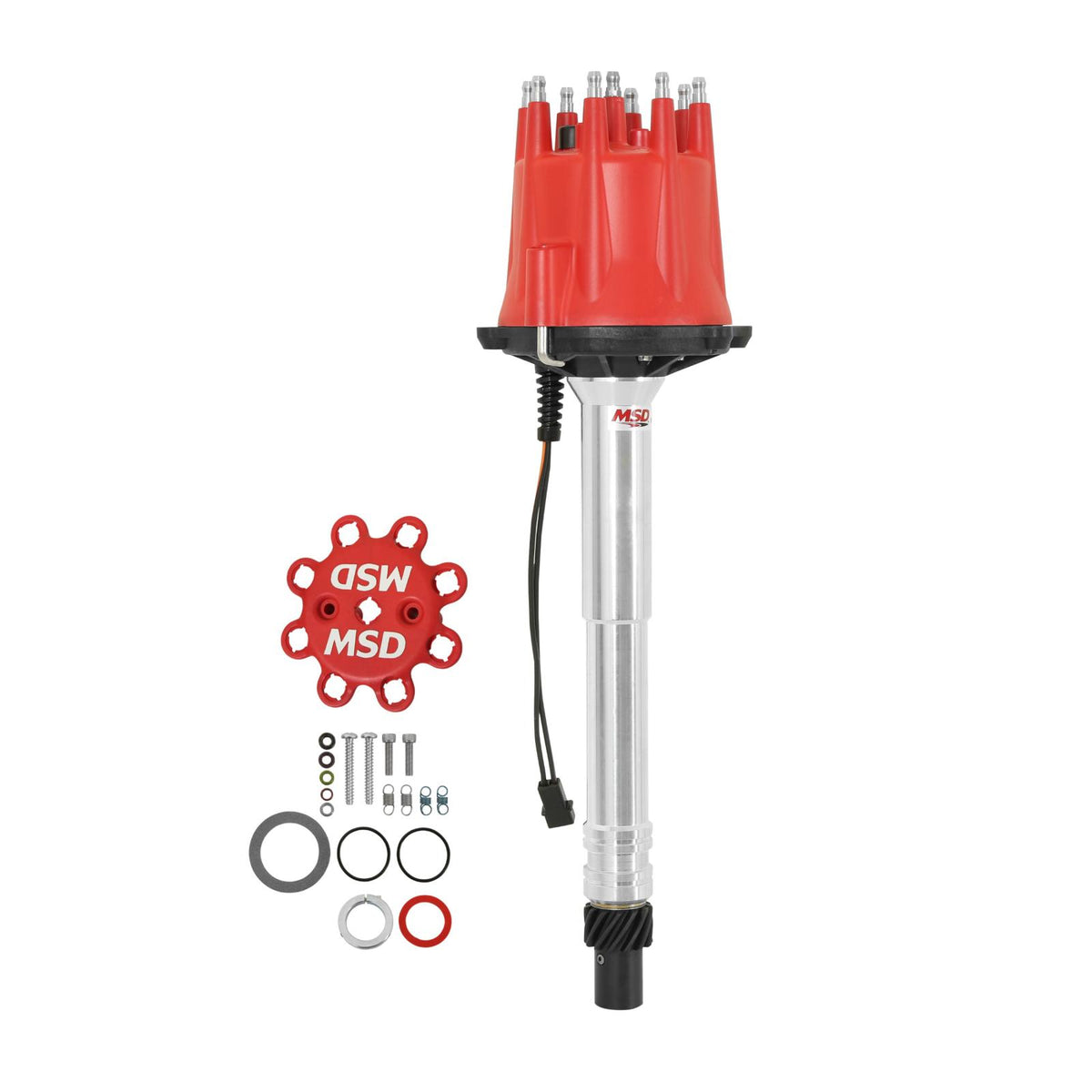

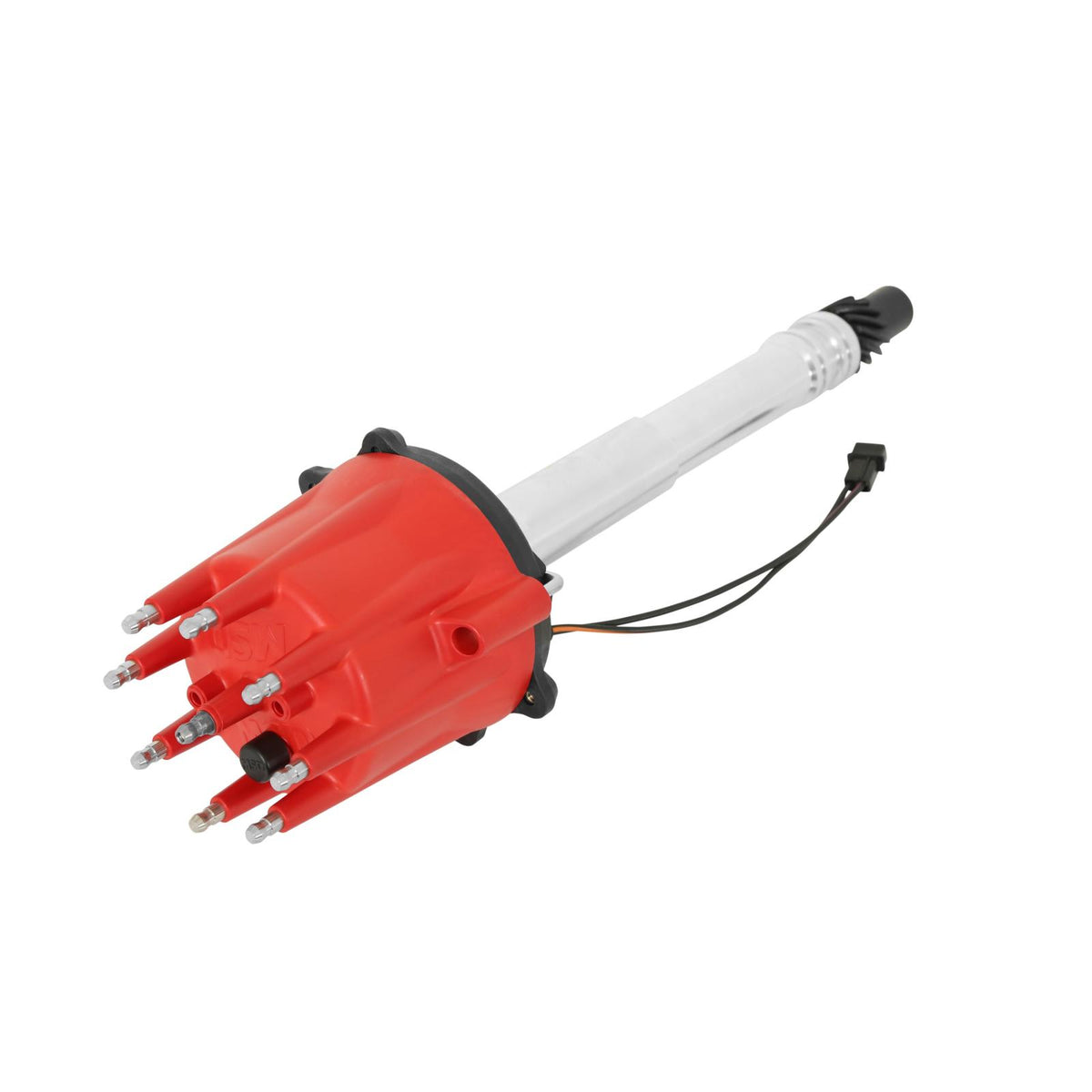

• Supplied with an HEI style distributor cap and rotor (accepts Cap-A-Dapts)
• Must be used with an MSD Ignition Control
• Nylon pads ensure smooth operation of the advance weights
• Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
• Mechanical advance assembly can be locked out for crank trigger systems
• CNC machined billet aluminum housing and Dupont Rynite base
• No CARB Exemption Order Number

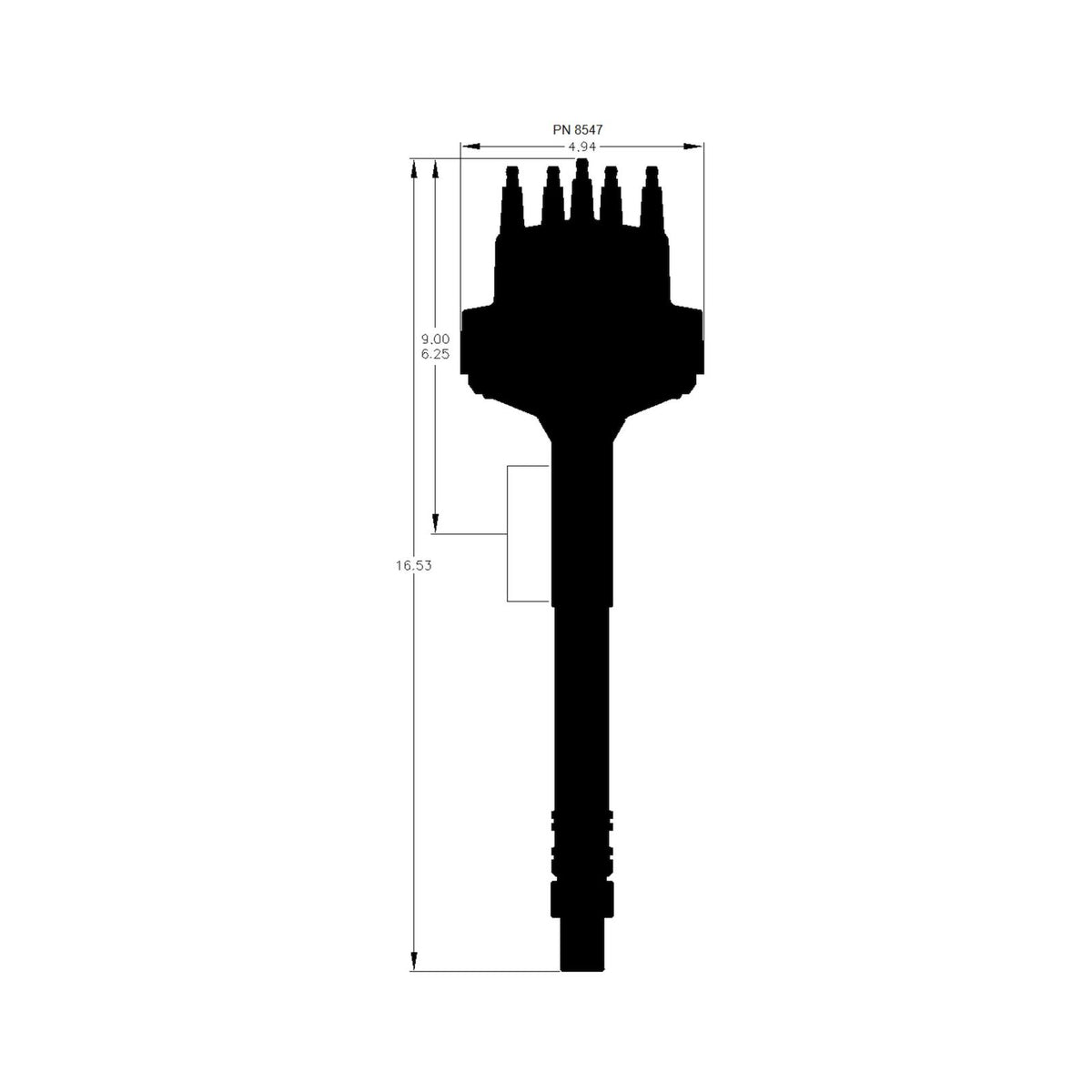

• Extra tall housing is designed for use with Alan Root, Donovan, Merlin and Rocket racing blocks

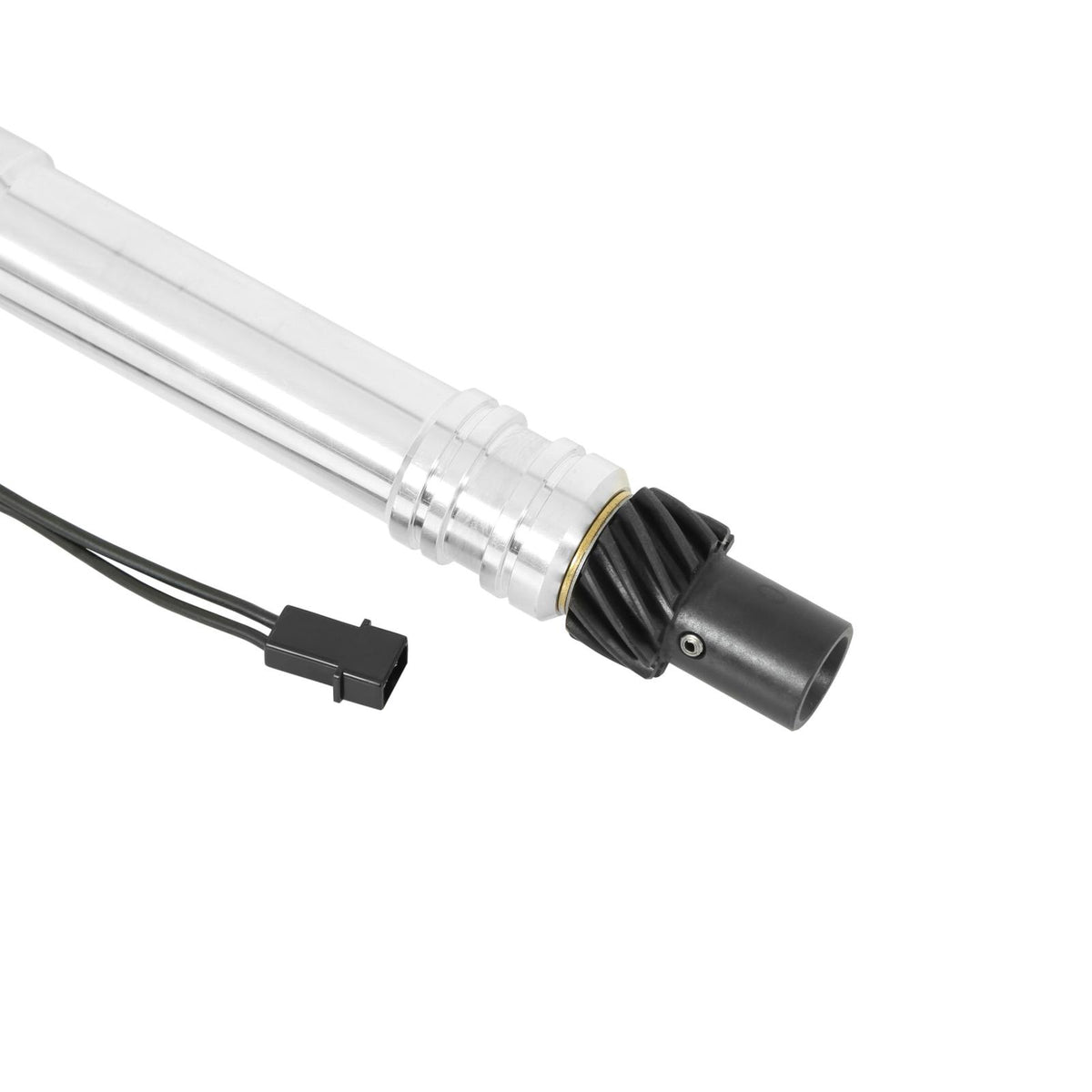

• Polished steel shaft is QPQ coated and guided by a sealed ball bearing and long sintered bushing
• Special oil tract improves lubrication to the distributor and cam gear
• Adjustable slip collar mounting flange provides up to 3” of adjustment

Details:

• Distributor Cap Included: Yes
• Distributor Type: Magnetic Pickup
• Emission Code: 3
• Gear Material: Cast Iron Melonized QPQ Coated
• Ignition Box Required: Yes
• Ignition Coil Included: No
• Ignition Rotor Included: Yes
• Warranty: Manufacturer's Limited 1 Year Warranty
